B84299D2160E001

Power Line Filter Modules Overview

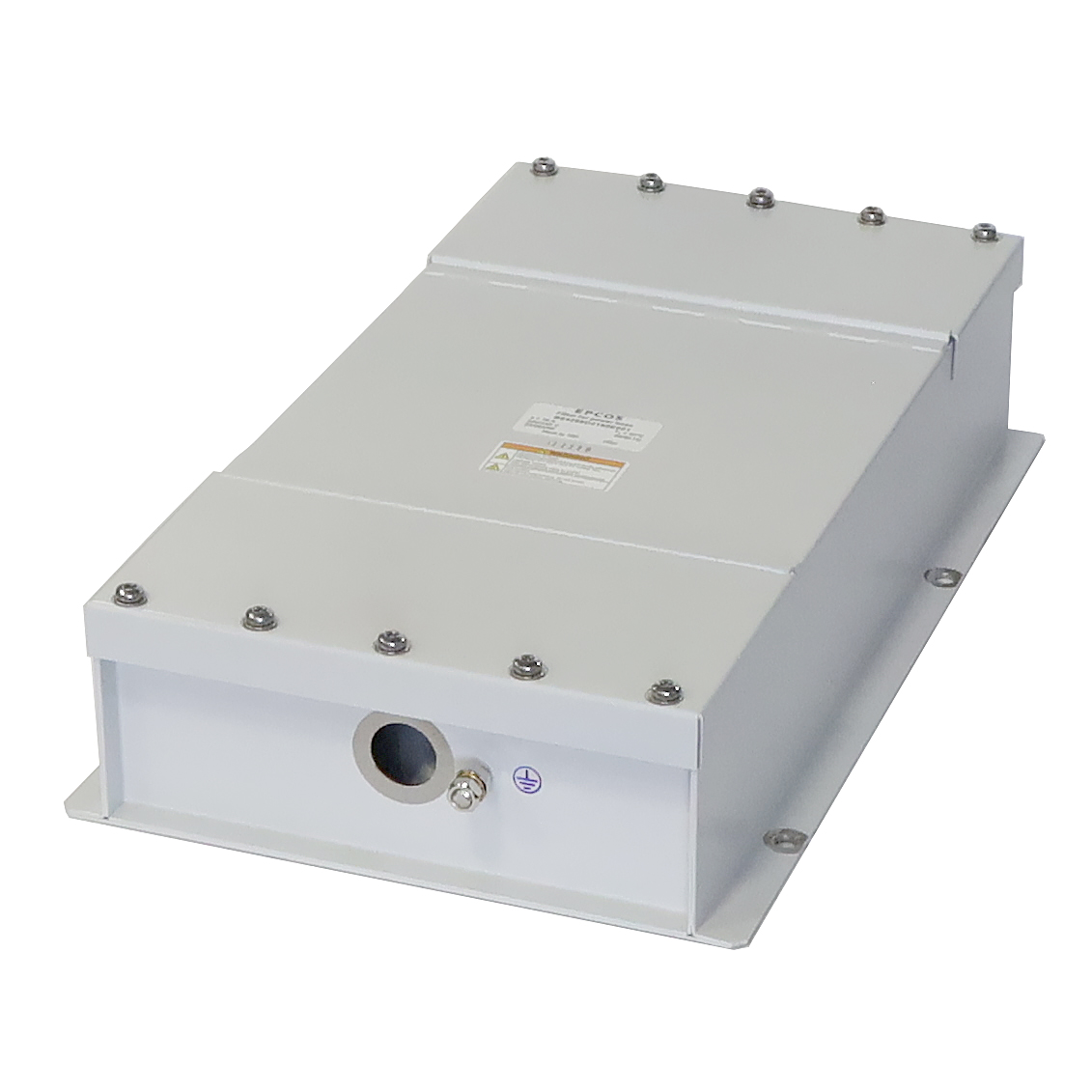

The B84299D2160E001 is a power line filter manufactured by TDK. It features four lines and supports a rated current of 16 A. The device operates at voltage ratings of 440 VAC and 250 VAC. It utilizes chassis mounting for installation and employs cable termination types. This component belongs to the B84299D series designed for electromagnetic compatibility in industrial applications.

Power Line Filter Modules Feature Summary

• Four-line configuration for comprehensive power filtering
• Chassis mount design for secure industrial integration
• Cable termination for direct wiring connections

Power Line Filter Modules Applications

• Industrial drive systems
• Inverter applications
• Power supply units requiring EMC compliance

Power Line Filter Modules Procurement Notes

Verify the specific ordering code against official TDK documentation to ensure correct variant selection. Confirm that the 16 A rating and 440/250 VAC specifications match the target system requirements. Check for any recent product change notifications or obsolescence notices from the manufacturer before finalizing procurement plans.

Power Line Filter Modules Selection Notes

Select this model when a four-line power filter with a 16 A capacity is required for chassis-mounted installations. Ensure the application environment supports the specified 440 VAC and 250 VAC operating voltages. Verify that cable termination methods align with the existing wiring infrastructure and mechanical constraints of the equipment enclosure.

Power Line Filter Modules Part Context

This component is part of the EPCOS (now TDK) portfolio of passive electronic components. The B84299D series focuses on electromagnetic interference suppression for power lines. TDK acquired EPCOS, integrating these specialized filters into their broader industrial electronics offerings for robust system reliability.

Power Line Filter Modules Replacement Considerations

Consult official TDK cross-reference lists for verified substitutes. Ensure any replacement maintains identical four-line topology, 16 A current rating, and chassis mount form factor to preserve system EMC performance and mechanical fit.
