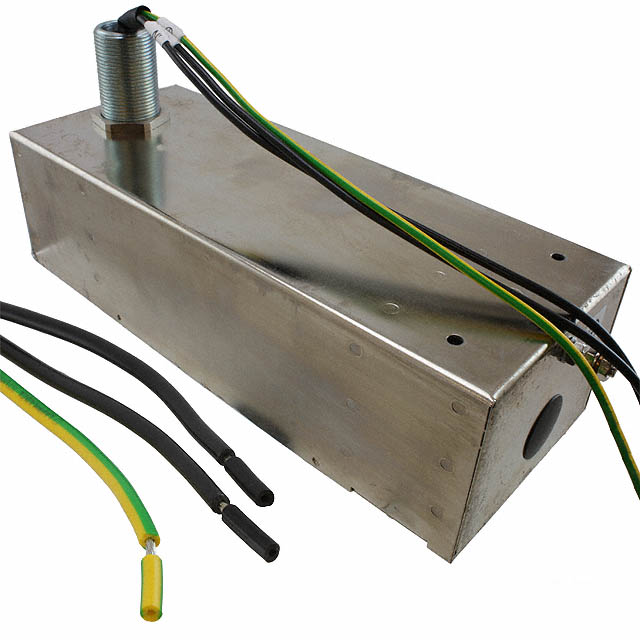

B84299D6050B003 is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists EPCOS - TDK Electronics. Its product description is LINE FILTER 250VAC 5A CHASS MNT. Review the specifications below when checking this part for your BOM.
Power Line Filter Modules specifications for B84299D6050B003
- Description：LINE FILTER 250VAC 5A CHASS MNT
- Series：B84299D6
- Mfr：EPCOS - TDK Electronics
- Package：Tray
- Filter Type：Single Phase
- Configuration：Three Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：5:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：cUL, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M4), Wire Leads
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Power Line Filter Modules datasheet and documents for B84299D6050B003
Power Line Filter Modules Overview
The B84299D6050B003 is a line filter manufactured by EPCOS, now part of TDK Electronics. It is designed for chassis mounting and operates at a rated voltage of 250VAC with a current rating of 5A. This component functions as a sine-wave output filter, intended to manage electromagnetic interference in power systems.
Power Line Filter Modules Feature Summary
- Chassis mount design for secure installation
- Sine-wave output filtering capability
- Rated for 250VAC operation
Power Line Filter Modules Applications
- Power supply input stages
- Industrial equipment noise suppression
- Inverter output filtering
Power Line Filter Modules Procurement Notes
Verify the complete ordering code B84299D6050B003 against official TDK documentation to ensure correct specifications. Confirm that the application requires a 5A rated sine-wave output filter compatible with 250VAC systems before procurement.
Power Line Filter Modules Selection Notes
Select this component when a dedicated sine-wave output filter is required for 250VAC applications. Ensure the mechanical layout supports chassis mounting and that the 5A current rating meets the system's operational demands without exceeding thermal limits.
Power Line Filter Modules Part Context
EPCOS components are integrated into TDK Electronics' portfolio. This filter belongs to the line filter category, supporting electromagnetic compatibility in electronic devices. The product ensures stable operation by mitigating interference in power circuits.
Power Line Filter Modules Replacement Considerations
Consult official TDK substitution guides for verified alternatives. Do not assume generic filters are compatible due to specific sine-wave filtering requirements.
