B84299D6300B000

Power Line Filter Modules Overview

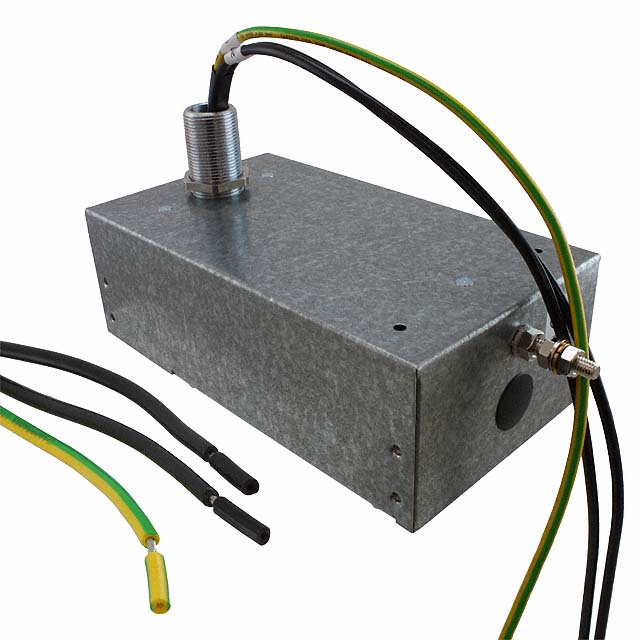

The B84299D6300B000 is a single-phase power line filter module designed for chassis mounting. It features a two-stage signal filtering design to suppress electromagnetic interference in AC mains applications. The component supports an AC rated voltage of 250V and operates with a current rating of 30A. It utilizes threaded posts for secure installation, ensuring reliable connectivity in industrial and commercial power supply systems requiring robust noise attenuation.

Power Line Filter Modules Feature Summary

• Single-phase signal filtering architecture
• Two-stage setup arrangement for enhanced attenuation
• Chassis mounting configuration with threaded posts

Power Line Filter Modules Applications

• Industrial power supplies
• Commercial equipment requiring EMI suppression
• AC mains input filtering

Power Line Filter Modules Procurement Notes

Verify the specific AC voltage rating (250V) against your system requirements before procurement. Confirm that the chassis mounting style and threaded post interface match your enclosure design. Ensure the 30A current capacity aligns with the load specifications. Check RoHS3 compliance status if required by your regulatory framework. Validate the single-phase requirement matches your power distribution network.

Power Line Filter Modules Selection Notes

Select this component when a two-stage filtering solution is required for single-phase AC lines. Consider the chassis mount form factor if panel integration is necessary. Evaluate the 30A current handling capability against peak load demands. Ensure the 250V AC rating is sufficient for the local mains voltage environment. Verify compatibility with existing thermal management strategies for enclosed installations.

Power Line Filter Modules Part Context

This part belongs to the EPCOS (TDK Electronics) power line filter portfolio, specifically designed for mains interference suppression. It complements other EMI/RFI filters in the series, offering a standardized chassis-mount solution. The product line focuses on providing reliable noise reduction for sensitive electronic equipment connected to AC power grids.

Power Line Filter Modules Replacement Considerations

Check for direct substitutes within the B84299 series or compatible EPCOS modules with identical 30A ratings and chassis mounting interfaces. Verify electrical parameters such as capacitance and leakage current if replacing with a different model number.
