B84299D6300B003

Power Line Filter Modules Overview

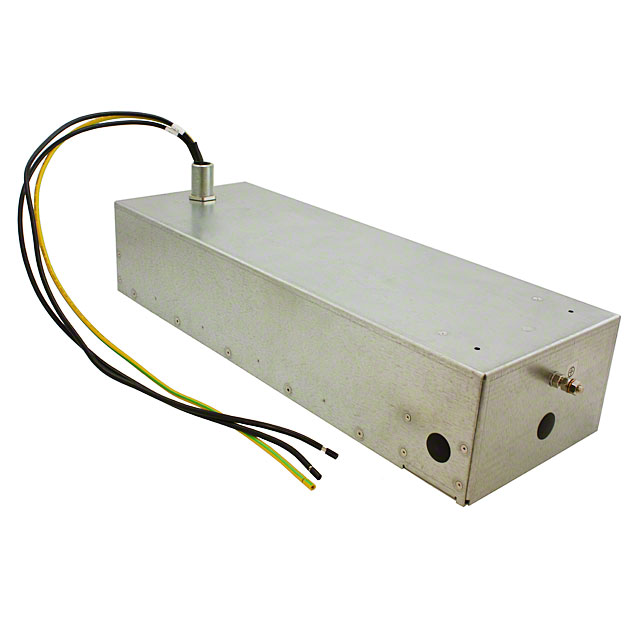

The B84299D6300B003 is a single-phase EMC/EMI power line filter module manufactured by EPCOS (TDK Electronics). It features a two-stage design intended for chassis mounting with threaded post (M4) connections and wire leads. The unit is rated for an AC voltage of 480VAC and supports a continuous current of 30A at 50/60Hz frequencies. This component is engineered to suppress electromagnetic interference in critical infrastructure applications.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Chassis mount construction with M4 threaded posts
• Designed for secure area and shielded room environments

Power Line Filter Modules Applications

• Shielded rooms
• Secure areas
• Critical infrastructure protection

Power Line Filter Modules Procurement Notes

Verify the specific part number B84299D6300B003 against official TDK/EPCOS documentation to confirm ratings and physical dimensions. Ensure compatibility with existing chassis mounting hardware and wiring specifications before integration into the system design.

Power Line Filter Modules Selection Notes

Select this model when high-current single-phase filtering is required for sensitive equipment in controlled environments. Consider the 30A rating and 480VAC capability against load requirements. Verify that the two-stage topology meets the specific attenuation needs of the installation site.

Power Line Filter Modules Part Context

This component belongs to the B84299D series of power line filters from EPCOS, now under TDK Electronics. The series provides robust EMI suppression solutions for industrial and specialized applications requiring reliable performance under high electrical loads.

Power Line Filter Modules Replacement Considerations

Consult official TDK substitution guides for verified equivalents. Do not assume cross-compatibility with other series without verifying electrical ratings and mechanical fit.
