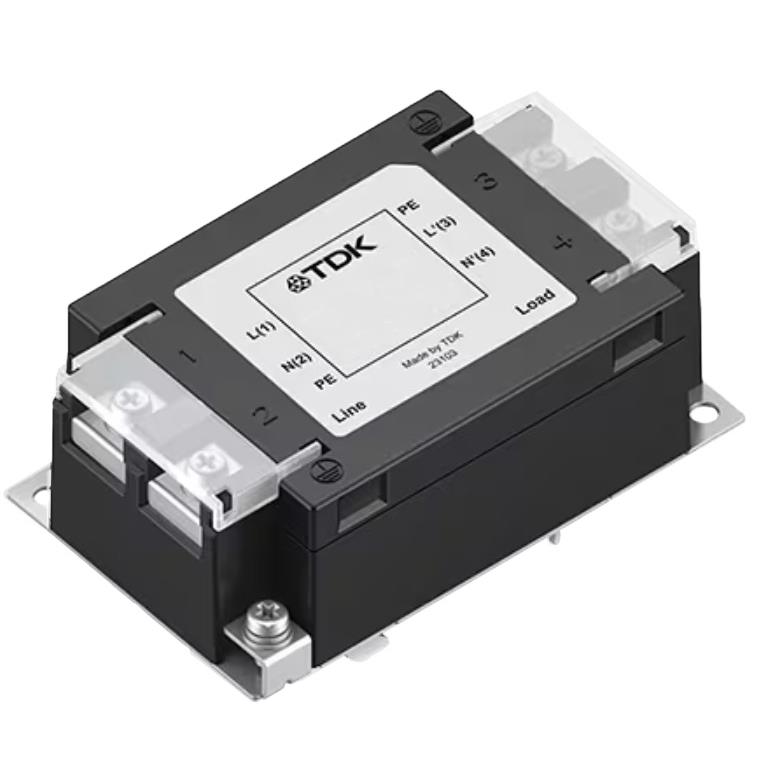

B84742A0006R725 is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists EPCOS - TDK Electronics. Its product description is LINE FILTER 250VAC/VDC 6A DIN. Review the specifications below when checking this part for your BOM.
Power Line Filter Modules specifications for B84742A0006R725
- Description：LINE FILTER 250VAC/VDC 6A DIN
- Series：B84742AxR725
- Mfr：EPCOS - TDK Electronics
- Package：Box
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：250V
- Voltage - Rated AC：250V
- Current：6:00 AM
- Frequency - Operating：50/60Hz
- Applications：Converter
- Approval Agency：UL
- Operating Temperature：-
- Mounting Type：DIN Rail
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Power Line Filter Modules datasheet and documents for B84742A0006R725
Power Line Filter Modules Overview
The B84742A0006R725 is a two-line power line EMC filter manufactured by TDK Electronics. It features a rated current of 6 A and operates at frequencies of 50/60 Hz with a voltage rating of 250 V AC. The component utilizes block terminals for connection and supports an operating temperature range from -25 to 100°C. Designed for converter applications, it carries UL approval agency certification. The unit weighs approximately 200g and belongs to the B84742A-R725 series.
Power Line Filter Modules Feature Summary
- Provides electromagnetic interference suppression for two-line power inputs
- Utilizes block terminal connections for secure mounting
- Certified by UL approval agency for safety compliance
Power Line Filter Modules Applications
- Converter systems
- Industrial automation equipment
- Power supply input stages
Power Line Filter Modules Procurement Notes
Verify the complete part number including suffixes against official TDK documentation to ensure correct configuration. Confirm that the required 6 A current rating and 250 V AC voltage specifications align with the target circuit design parameters before procurement.
Power Line Filter Modules Selection Notes
Select this component based on its specific 6 A current handling capability and suitability for 50/60 Hz operation. Ensure the application environment falls within the specified -25 to 100°C temperature range and requires UL certified filtering solutions for industrial or converter use cases.
Power Line Filter Modules Part Context
This component is part of the B84742A-R725 series of power line filters produced by TDK Electronics. The series focuses on providing essential EMI protection for AC power lines in electronic systems requiring robust interference mitigation and standardized safety certifications.
Power Line Filter Modules Replacement Considerations
Consult official TDK cross-reference lists for verified substitutes. Generic equivalents may not match the specific 6 A rating or UL certification status.
