B84742A0036R190

Power Line Filter Modules Overview

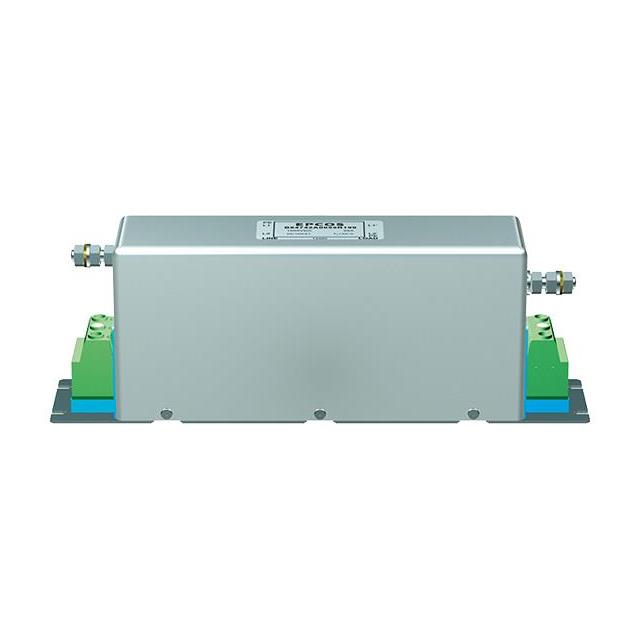

The B84742A0036R190 is a single-phase power line EMC filter manufactured by TDK. It features a rated current of 36 A and an inductance of 10 mH. The component operates within a temperature range of -25°C to 100°C and utilizes block terminal connections for chassis mounting. It holds cURus, ENEC, and VDE approvals.

Power Line Filter Modules Feature Summary

• Single-phase EMI/EMC filtering capability
• Chassis mount construction with block terminals
• Multiple international safety certifications

Power Line Filter Modules Applications

• Industrial power supply input stages
• Motor drive systems
• Medical equipment power inputs

Power Line Filter Modules Procurement Notes

Verify the specific suffix R190 against official TDK documentation to confirm terminal configuration and approval status. Ensure the 36 A rating aligns with system requirements. Cross-reference the part number with current TDK catalogs as brand transitions may affect labeling.

Power Line Filter Modules Selection Notes

Select this component for applications requiring single-phase noise suppression at 36 A. Confirm that the 10 mH inductance meets circuit impedance needs. Verify chassis mounting space and terminal block compatibility before integration into the design.

Power Line Filter Modules Part Context

This component belongs to the B84742A series of power line filters from TDK Electronics. The series provides standardized EMC solutions for industrial and commercial power applications. TDK acquired EPCOS, integrating these passive components into its broader portfolio.

Power Line Filter Modules Replacement Considerations

Consult official TDK substitution guides for verified equivalents. Generic cross-references are not recommended due to specific certification and terminal requirements.
