B84771C0015A000

Power Line Filter Modules Overview

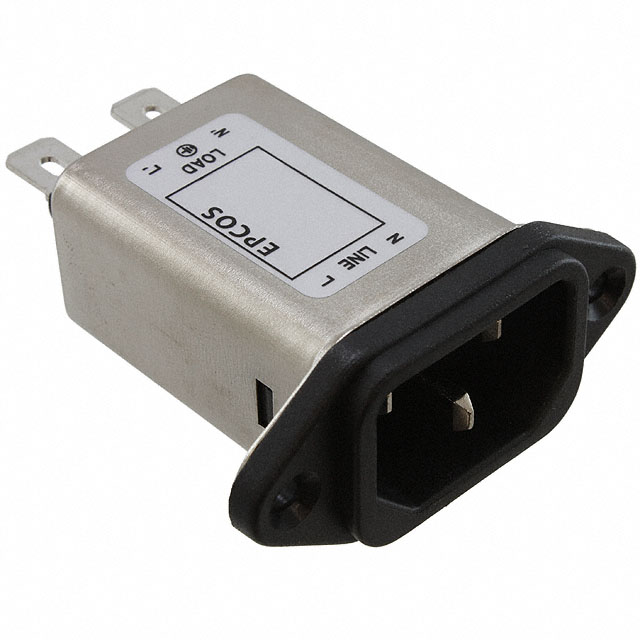

The B84771C0015A000 is a TDK EPCOS AC power entry module featuring integrated EMC filtering. Rated for 15 A current and 250 V AC/DC, it utilizes a metal case construction with an IEC 60320-1 appliance connector. The unit employs quick connect terminals (1/4" Faston) for panel mounting. It operates within a temperature range of -25°C to +85°C at 50/60 Hz frequencies. Dimensions are 50 mm length, 22.5 mm width, and 38.4 mm height. This component lacks a bleeder resistor and includes UL Recognized Component, CSA certified, and RoHS compliance certifications.

Power Line Filter Modules Feature Summary

• Integrated two-line EMC filtering within a metal enclosure
• Standard IEC 60320-1 appliance inlet connector
• Quick connect terminal interface for simplified wiring
• Certified for international safety standards including UL and CSA

Power Line Filter Modules Applications

• AC power input stages for industrial electronic equipment
• Electromagnetic interference suppression in consumer appliances
• Power supply entry modules for communication infrastructure

Power Line Filter Modules Procurement Notes

Verify the specific suffix 'C' indicates the absence of a bleeder resistor, distinguishing it from variants like the B84771A series which include discharge resistors. Confirm that the 1/4 inch faston terminal pitch matches the target PCB or wire harness specifications. Ensure the metal housing dimensions fit the designated panel cutout and clearance requirements for the final assembly design.

Power Line Filter Modules Selection Notes

Select this model when a 15 A rating and integrated EMI filtering are required without the need for a high-voltage bleeder resistor. The metal case provides superior shielding compared to plastic alternatives. Verify that the operating environment stays within the specified -25°C to +85°C thermal limits. Consider the panel mount configuration if space constraints preclude chassis-mounted solutions.

Power Line Filter Modules Part Context

This component belongs to the B84771C series of IEC inlet filters manufactured by TDK Electronics (formerly EPCOS). These units are designed as complete power entry modules combining safety switches, fuses, and filters into a single compact package. The series supports various current ratings and terminal configurations to accommodate diverse global power input requirements.

Power Line Filter Modules Replacement Considerations

Direct substitutes include other B84771C series variants with identical electrical ratings but different current capacities, such as B84771C0012A000 for 12 A applications. Cross-referencing with B84771A series parts requires verifying the presence of a bleeder resistor, which alters circuit behavior.
