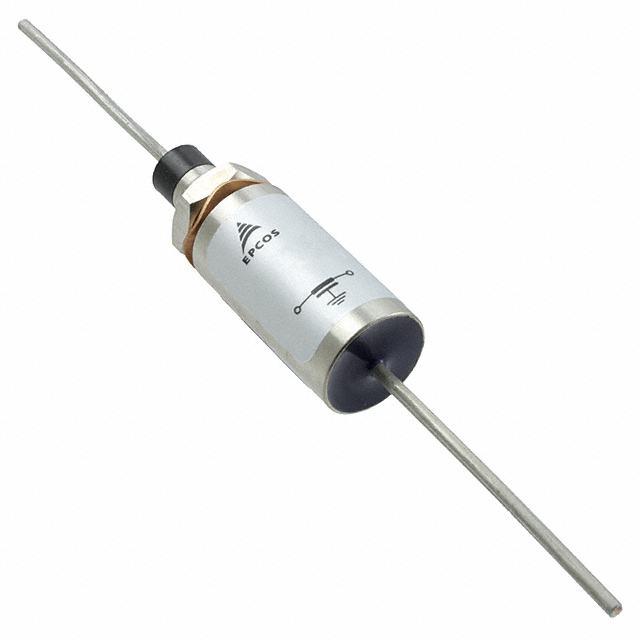

B85121A2502C160

Description：CAP FEEDTHRU 5000PF 600V AXIAL
Series：B85121
Mfr：EPCOS - TDK Electronics
Package：Tray

SKU:b84c9c825095 Category: Feed Through Capacitors Brand: EPCOS - TDK Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CAP FEEDTHRU 5000PF 600V AXIAL
Series：B85121
Mfr：EPCOS - TDK Electronics
Package：Tray
Voltage - Rated：600V
Current：16 A
Operating Temperature：-40°C ~ 85°C
Mounting Type：-
Package / Case：Axial, Bushing
Size / Dimension：0.630" Dia x 1.181" L (16.00mm x 30.00mm)
Capacitance：5000 pF
Tolerance：±20%
DC Resistance (DCR) (Max)：-
Insertion Loss：40dB @ 100MHz
Temperature Coefficient：-
Ratings：-
Height (Max)：-
Thread Size：M10x0.75

Download product information

B85121A2502C160

Overview

The B85121A2502C160 is a feed-through capacitor manufactured by EPCOS (TDK Electronics). It features a capacitance of 5000 pF with a tolerance of ±20%. The component has a rated voltage of 600V and supports a current rating of 16 A. It utilizes an M10x0.75 thread size for mounting.

Feature Summary

Provides electromagnetic interference filtering as signals pass through shielded enclosures
Designed for axial mounting configurations

Applications

Filtering electromagnetic interference in shielded enclosure applications

Procurement Notes

Verify the specific datasheet version and manufacturer documentation to confirm technical specifications. Note that this component may be listed as obsolete in some distributor catalogs; check for availability or suitable alternatives if necessary.

Selection Notes

Select this component when a high-current feed-through capacitor is required for EMI suppression in shielded environments. Ensure the M10x0.75 thread size matches the installation requirements and that the 600V rating meets the circuit voltage needs.

Part Context

This part belongs to the feed-through capacitor series from EPCOS, designed for robust EMI filtering in industrial and communication applications. It integrates into shielded systems to maintain signal integrity while blocking noise.

Replacement Considerations

Check for direct substitutes with identical M10x0.75 threading, 5000 pF capacitance, and 600V rating. Verify current handling capabilities match the 16 A requirement.
