B86301U0024R000

Power Line Filter Modules Overview

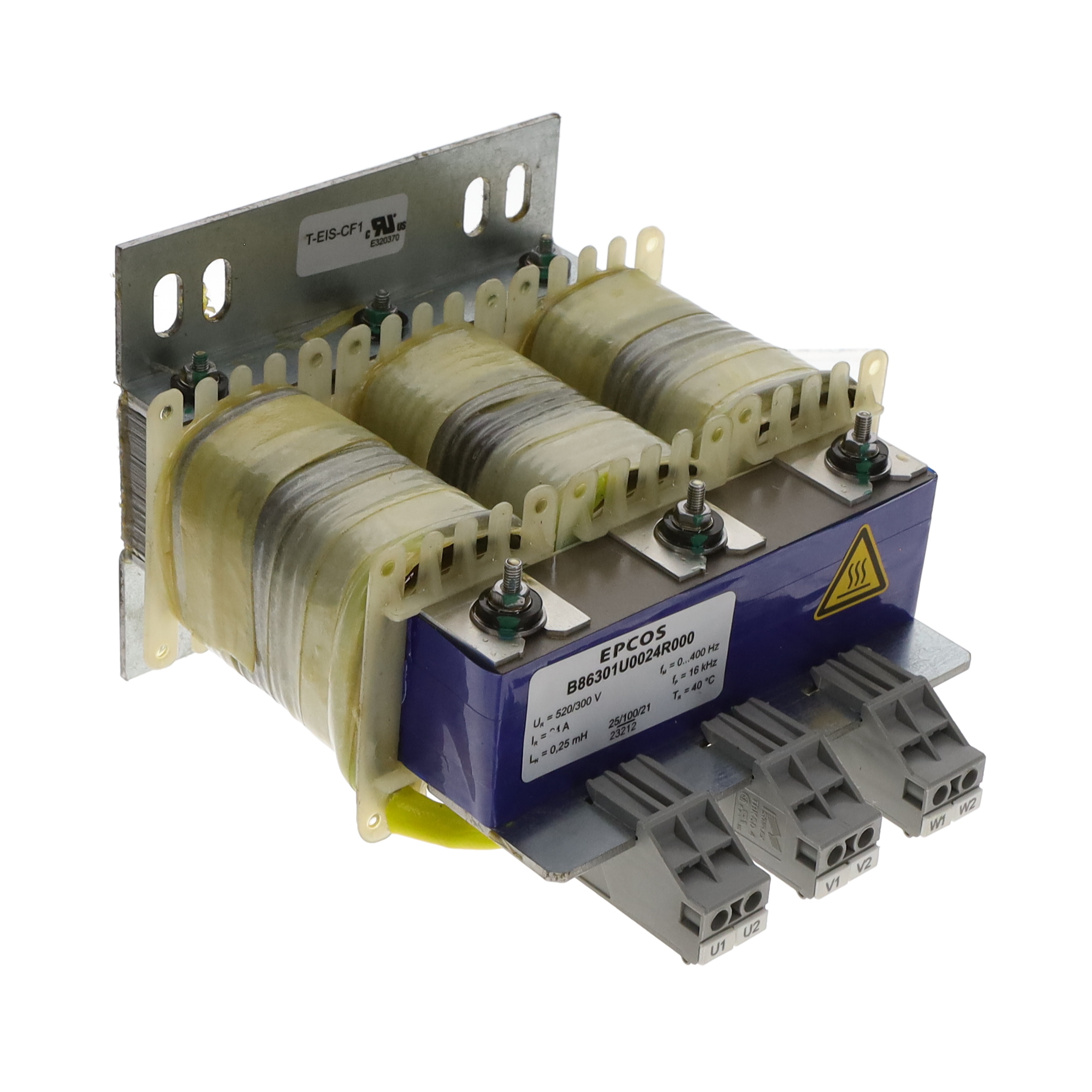

The B86301U0024R000 is a three-phase (Delta) EMC/EMI line filter module manufactured by TDK Electronics. It is rated for a continuous current of 24 A and operates at 50 to 60 Hz with a phase-to-phase AC voltage rating of 520 V. The component features a single-stage filtering design and exhibits a relative voltage drop of 0.82%. It utilizes terminal block connections for installation.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for three-phase power systems
• Designed for industrial and commercial applications requiring robust filtering
• Utilizes a single-stage architecture for efficient noise reduction

Power Line Filter Modules Applications

• Industrial three-phase power distribution systems
• Commercial equipment requiring EMI/EMC compliance
• Three-phase motor drive input stages

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version and environmental certifications such as RoHS and REACH status before procurement. Confirm that the terminal block connection type matches the panel mounting requirements. Ensure the 520VAC and 24A ratings align with the system's electrical parameters to prevent operational failure.

Power Line Filter Modules Selection Notes

Select this component when a dedicated three-phase Delta configuration is required for high-current applications up to 24 A. The low voltage drop characteristic makes it suitable for sensitive loads where efficiency is critical. Verify compatibility with the specific frequency range of 50 to 60 Hz during the design phase.

Power Line Filter Modules Part Context

This part belongs to the B86301U series of power line filters from TDK Electronics, formerly associated with the EPCOS brand. The series is engineered for industrial environments, offering standardized solutions for electromagnetic compatibility in three-phase networks. The U suffix typically denotes specific housing or mounting variations within the product family.

Power Line Filter Modules Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Cross-referencing requires matching the 24 A current rating, 520 VAC voltage rating, and Delta topology. Consult manufacturer catalogs for direct equivalents.
