B86305L0010R000

Power Line Filter Modules Overview

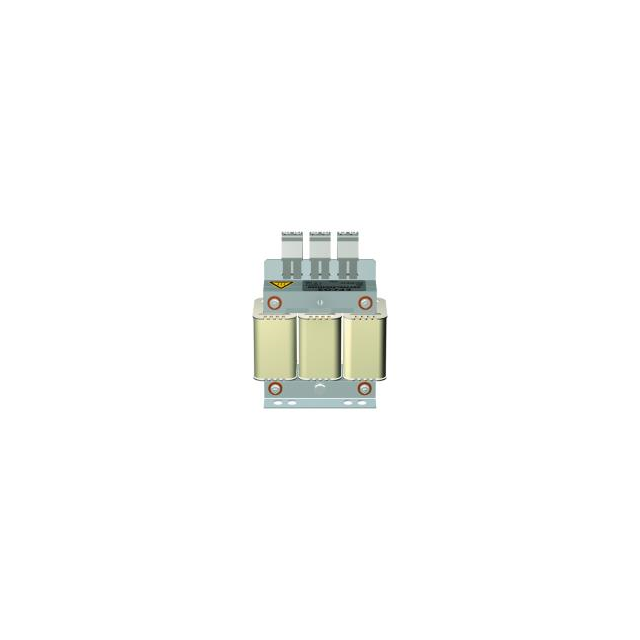

The B86305L0010R000 is a three-phase EMI/EMC power line filter manufactured by TDK Electronics. It features a rated current of 10 A and a voltage rating of 520 VAC. The unit provides an inductance of 4 mH per phase with a single-stage configuration. Designed for chassis mounting via terminal blocks, it operates at frequencies of 50 Hz and 60 Hz. The component utilizes F-class insulation systems compliant with UL standards.

Power Line Filter Modules Feature Summary

• Provides effective suppression of electromagnetic interference generated by frequency converters with rectifier inputs.
• Maintains stable inductance values under high overload conditions due to high saturation magnetic flux density.
• Constructed with F-class insulated systems certified by UL for reliable operation in demanding environments.

Power Line Filter Modules Applications

• Frequency converters equipped with rectifier stage inputs
• Industrial drive systems and motor controllers
• Pump control units and elevator drives
• Air conditioning compressor systems

Power Line Filter Modules Procurement Notes

Verify the specific part number suffix against official TDK documentation to confirm exact electrical characteristics and packaging details. Ensure compatibility with existing chassis mounting hardware and terminal block specifications before integration into the design.

Power Line Filter Modules Selection Notes

Select this model for applications requiring 10 A continuous current handling at 520 VAC. The 4 mH inductance value is suitable for standard EMI reduction needs in industrial power electronics. Confirm that the terminal block connection method aligns with the system's wiring infrastructure.

Power Line Filter Modules Part Context

This component belongs to the B86305L series of standard three-phase line reactors. The series covers a wide range of currents from 4 A to 230 A, designed specifically for use with variable frequency drives. The product line emphasizes robust performance under overload conditions while maintaining strict electromagnetic compatibility standards.

Power Line Filter Modules Replacement Considerations

Consult official TDK cross-reference lists for verified substitutes. Ensure any replacement maintains the 10 A current rating, 520 VAC voltage rating, and 4 mH inductance specification to preserve system functionality.
