B86305L0035R000

Power Line Filter Modules Overview

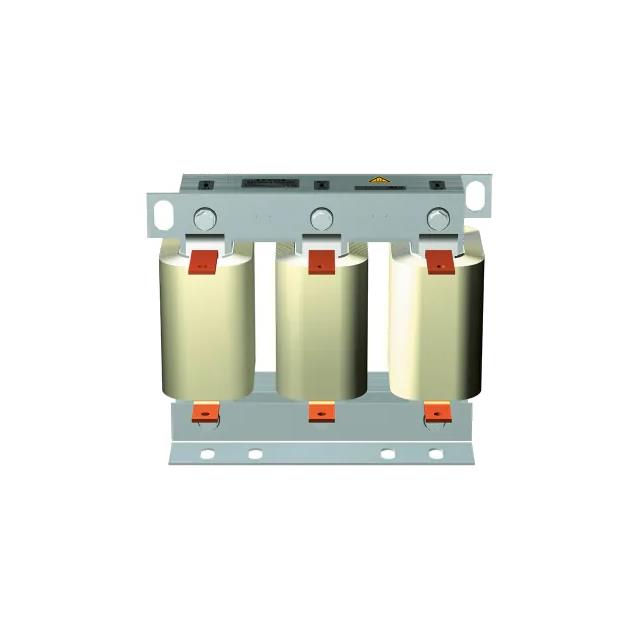

The B86305L0035R000 is a standard three-phase line reactor manufactured by EPCOS (TDK Electronics), designed for use with frequency inverters featuring rectifier stage inputs. It operates at a rated voltage of 520VAC and supports a current range up to 35A. The unit features finger-safe terminal blocks and is available in LF, MF, and HF variants. Key electrical characteristics include a short-circuit voltage between 5% and 6%, ensuring effective electromagnetic interference suppression. The reactor utilizes a high saturation magnetic flux density to maintain inductance stability under overcurrent conditions.

Power Line Filter Modules Feature Summary

• Provides effective electromagnetic interference suppression for frequency inverter systems
• Maintains stable inductance values under high overcurrent conditions due to high saturation magnetic flux density
• Features finger-safe terminal blocks for secure and convenient installation

Power Line Filter Modules Applications

• Frequency inverters with rectifier stage inputs
• Industrial automation drives
• Pump control systems
• Elevator drive systems
• Air conditioning compressor drives

Power Line Filter Modules Procurement Notes

Verify the specific variant suffix (LF, MF, or HF) required for your application when ordering. Confirm that the rated voltage of 520VAC matches your system specifications. Ensure the current rating aligns with the load requirements. Check for UL certification and F-class insulation system compliance if operating in high-temperature environments. Consult official TDK documentation for detailed mounting and wiring guidelines.

Power Line Filter Modules Selection Notes

Select this component based on the need for EMC filtering in three-phase AC drives. The choice depends on the specific current load and the desired short-circuit voltage percentage. Consider the physical dimensions and terminal type compatibility with existing infrastructure. Evaluate the thermal performance requirements against the ambient operating conditions. Ensure the inductor's inductance tolerance meets the precision needs of the control loop.

Power Line Filter Modules Part Context

This part belongs to the B86305L* series of standard three-phase line reactors from EPCOS. The series offers multiple models covering currents from 4A to 230A. These reactors are engineered to mitigate electromagnetic disturbances generated by power electronic converters. They are integral components in modern industrial power transmission and distribution networks.

Power Line Filter Modules Replacement Considerations

Direct substitutes must match the 520VAC rating, 35A current capacity, and three-phase configuration. Verify equivalent short-circuit voltage and inductance values. Ensure compatible terminal block types and physical footprint. Cross-reference with other TDK/EPCOS models in the B86305L series for similar specifications.
