B86305L0050R000

Power Line Filter Modules Overview

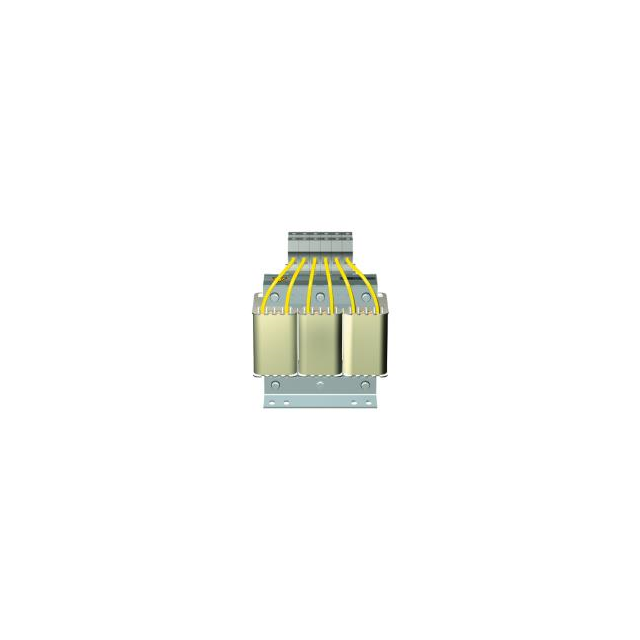

The B86305L0050R000 is a three-phase delta-connected EMC/EMI power line filter manufactured by TDK Electronics. It features a single-stage configuration with a rated current of 50 A and a voltage rating of 520 VAC at 50/60 Hz. The unit has an inductance of 0.6 mH (600 µH) and utilizes terminal block connections for chassis mounting. Operating temperatures range from -25°C to +100°C, with physical dimensions of 185 mm length, 150 mm width, and 200 mm height.

Power Line Filter Modules Feature Summary

• Designed specifically for frequency converters with rectifier inputs to suppress electromagnetic interference
• High saturation magnetic flux density ensures effective filtering performance under varying load conditions
• Finger-safe terminal blocks provide secure electrical connections while maintaining operator safety

Power Line Filter Modules Applications

• Frequency converter systems
• Industrial drive applications
• Inverter input stages

Power Line Filter Modules Procurement Notes

Verify the complete part number including suffixes against official TDK documentation to ensure correct specifications. Confirm RoHS compliance status and specific packaging details directly with authorized distributors or the manufacturer prior to ordering. Check for any recent product change notifications that may affect marking or minor design attributes.

Power Line Filter Modules Selection Notes

Select this component when a single-stage solution is required for three-phase delta networks operating at 520 VAC. Ensure the application current does not exceed the 50 A rating and that chassis mounting space accommodates the specified dimensions. Verify compatibility with the specific frequency converter model regarding short-circuit voltage requirements.

Power Line Filter Modules Part Context

This component belongs to the B86305L series of standard three-phase line reactors developed by EPCOS (TDK). The series covers current ratings from 4 A to 230 A and is engineered for integration into industrial power electronics. These reactors are designed to mitigate electromagnetic disturbances generated by variable frequency drives.

Power Line Filter Modules Replacement Considerations

Consult official TDK substitution guides for verified alternatives within the B86305L series. Cross-referencing with other manufacturers requires careful validation of electrical parameters and mechanical fit.
