B86305L0156S000

Power Line Filter Modules Overview

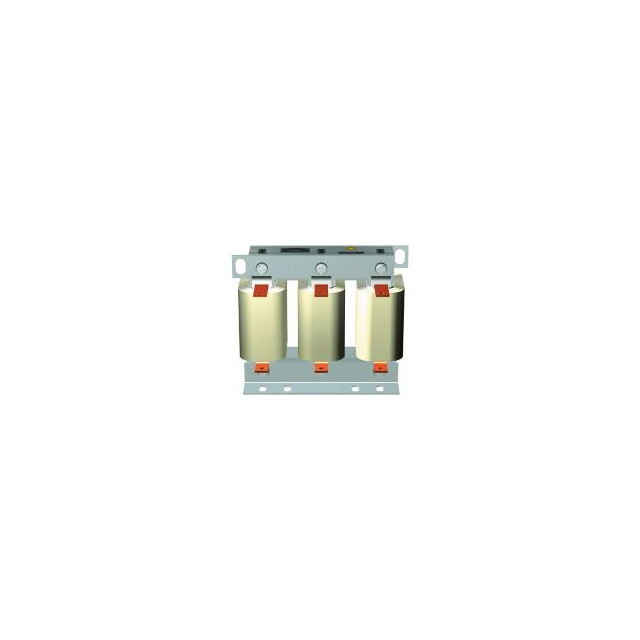

The B86305L0156S000 is a three-phase delta line reactor manufactured by EPCOS - TDK Electronics. It features a rated current of 156 A and an inductance of 200µH. Designed for converter applications, it operates at a rated voltage of 520VAC with a relative voltage drop of 4.2%. The component utilizes aluminum foil winding technology and connects via busbars.

Power Line Filter Modules Feature Summary

• High saturation magnetic flux density maintains inductance stability under overcurrent conditions
• Aluminum foil winding construction for robust high-current transmission
• Busbar terminal interface for secure mechanical and electrical connection

Power Line Filter Modules Applications

• Three-phase line reactors for converters
• Variable frequency drive input stages
• Industrial motor control systems

Power Line Filter Modules Procurement Notes

Verify the specific ordering suffix to confirm terminal type and winding material. Confirm that the application environment aligns with the F-class insulation rating. Ensure mechanical mounting provisions match the busbar configuration specified in the official datasheet before finalizing procurement.

Power Line Filter Modules Selection Notes

Select this model for applications requiring stable inductance during transient overcurrent events. The aluminum foil winding offers distinct structural advantages for high-current ratings compared to copper alternatives. Verify compatibility with the 520VAC system voltage and ensure adequate thermal management for the operating temperature range.

Power Line Filter Modules Part Context

This component belongs to the B86305L series of standard three-phase line reactors designed specifically for variable frequency drives with rectifier inputs. The series provides electromagnetic interference suppression and protects downstream electronics from voltage spikes generated by switching operations.

Power Line Filter Modules Replacement Considerations

Substitute only with other B86305L series variants having identical or compatible electrical parameters. Verify that alternative models support the same 156A current rating and 200µH inductance to maintain circuit performance integrity.
