B86305L0230S000

Power Line Filter Modules Overview

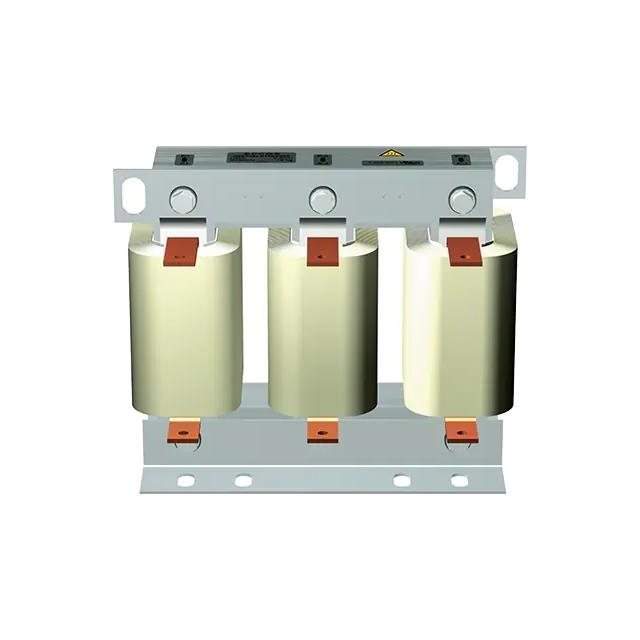

The B86305L0230S000 is a three-phase delta-connected EMC/EMI line filter manufactured by TDK. Designed for chassis mounting, it supports a rated current of 230 A and operates at 50/60 Hz with a 520 VAC rating. The unit features terminal block termination and single-stage configuration. It functions as a standard three-phase line reactor specifically engineered for converters with rectifier inputs, providing effective electromagnetic interference suppression in industrial power systems.

Power Line Filter Modules Feature Summary

• Engineered for high saturation magnetic induction to maintain inductance under overcurrent conditions
• Utilizes UL-certified Class F insulation system for thermal reliability
• Designed to effectively suppress all electromagnetic interference generated by frequency converters

Power Line Filter Modules Applications

• Converters with rectifier inputs
• Industrial drive systems
• Pump control applications
• Elevator machinery
• Air conditioning units

Power Line Filter Modules Procurement Notes

Verify the specific suffix 'S000' against official TDK documentation to confirm physical dimensions and terminal type compatibility. Ensure the application environment does not exceed the specified operating temperature range. Confirm that the 520VAC rating aligns with the target power system voltage. Cross-reference the 230A current rating with actual load profiles to prevent saturation issues beyond design limits.

Power Line Filter Modules Selection Notes

Select this component when designing systems requiring robust EMI suppression for high-current three-phase converter inputs. The choice depends on the need for stable inductance during transient overcurrent events up to three times the rated value. Consider the chassis mount form factor and terminal block interface for panel integration requirements in industrial automation setups.

Power Line Filter Modules Part Context

This part belongs to the B86305L series of standard three-phase line reactors from TDK/EPCOS. The series covers current ratings from 4A to 230A, offering scalable solutions for various power levels. The S000 suffix typically denotes specific construction details within the series, such as aluminum strip windings and busbar terminals for higher current models.

Power Line Filter Modules Replacement Considerations

Consult official TDK substitution guides for direct equivalents. Verify that any alternative maintains the 230A rating, 520VAC specification, and delta connection topology. Ensure mechanical mounting dimensions and terminal configurations are compatible with existing infrastructure.
