BA-25.000MBE-T

Oscillators Overview

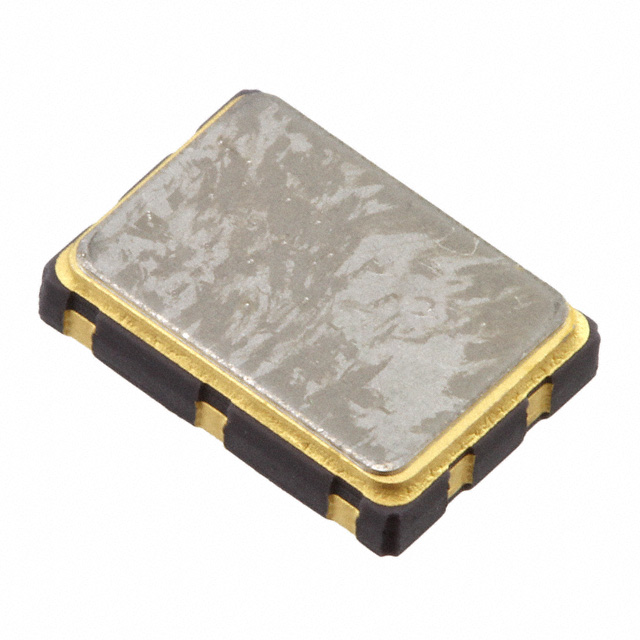

The BA-25.000MBE-T is a standard clock oscillator manufactured by TXC Corporation, operating at a frequency of 25 MHz with CMOS output. It functions on a 3.3V supply voltage and features an enable/disable control function. The unit provides a frequency stability of ±50 ppm and draws a maximum current of 80 mA. Designed for surface mount installation, it utilizes a 6-SMD, no lead package measuring 7.00mm x 5.00mm x 1.50mm. The component supports an industrial operating temperature range from -40°C to +85°C and complies with RoHS3 standards.

Oscillators Feature Summary

• Integrated enable and disable functionality for power management control
• CMOS logic output compatible with standard digital interfaces
• Industrial grade temperature rating for harsh environment operation

Oscillators Applications

• Standard clock signal generation in electronic circuits
• Timing reference sources for embedded systems
• Digital communication interface synchronization

Oscillators Procurement Notes

Verify the specific ordering suffix to ensure the correct packaging format matches production requirements. Confirm that the 3.3V supply voltage aligns with the target system design. Ensure the 6-SMD footprint dimensions are compatible with the PCB layout constraints. Check compliance documentation for regional regulatory adherence before finalizing procurement orders.

Oscillators Selection Notes

Select this model when a 25 MHz timing source with CMOS output is required. Consider the 80 mA current consumption against available power budgets. Verify that the 7.00mm x 5.00mm package size fits within the designated area. Ensure the enable pin capability meets system power sequencing needs. Confirm the ±50 ppm stability requirement is sufficient for the application timeline.

Oscillators Part Context

This component belongs to the BA series of standard oscillators produced by TXC Corporation. The series offers various output types and frequencies tailored for general-purpose timing applications. The BA-25.000MBE-T specifically addresses the need for reliable 25 MHz clock signals in compact surface-mount designs.

Oscillators Replacement Considerations

Direct substitutes include other 25 MHz XO oscillators with identical 6-SMD footprints and CMOS outputs. Verify pinout compatibility and electrical specifications before swapping components.
