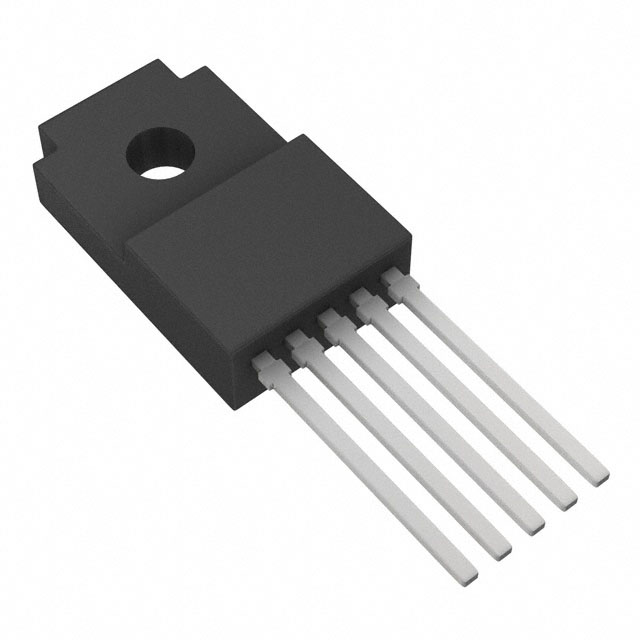

BA25BC0WT-V5

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

The BA25BC0WT-V5 is a low-saturation LDO regulator from ROHM Semiconductor with a maximum output current of 1A and an output voltage accuracy of ±2%. It supports a wide output voltage range from 1.5V to 10V and includes built-in overcurrent protection and thermal shut-down (TSD) circuits to prevent damage from short-circuits and overloading.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

• Low saturation voltage design for efficient power regulation
• Integrated overcurrent protection circuitry
• Thermal shut-down mechanism for overload safety

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

• Typical application circuits for variable output LDO regulators
• Embedded systems requiring stable DC voltage conversion
• Power management in electronic devices needing 1A output capability

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify the exact part number suffix against official ROHM documentation, as suffixes often indicate specific package types or temperature ranges. Confirm availability status directly with the manufacturer or authorized distributors, as product lifecycles may change. Ensure the selected variant matches your required input voltage and output configuration specifications before ordering.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this component when a 1A output current with high accuracy is required. The low saturation characteristic makes it suitable for applications with narrow input-output voltage differentials. Verify that the system operates within the specified temperature range and that external components meet the recommended values for stability and protection.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This device belongs to the BAxxBC0W series of low-saturation regulators. These parts are designed for general-purpose power supply applications where efficiency and compact size are important. The series offers various fixed and adjustable output options to accommodate different voltage requirements in consumer and industrial electronics.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Replacement Considerations

Check for direct substitutes within the BAxxBC0W family that match the required output voltage and current rating. Ensure any replacement maintains the same package type and pinout compatibility if board space is constrained. Verify that the alternative part meets the same electrical performance standards for dropout voltage and protection features.
