BA6209N

Overview

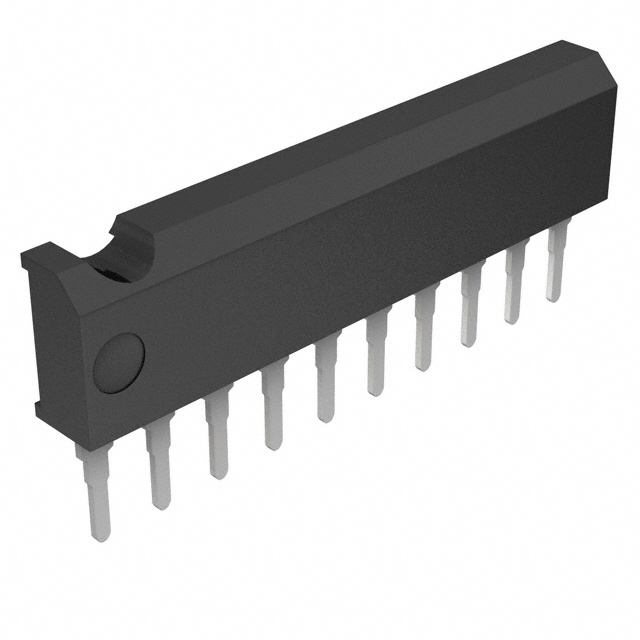

The BA6209N is a reversible motor driver designed for brush motors, manufactured by ROHM Semiconductor. It operates within a supply voltage range of 6V to 18V and utilizes CMOS technology. The component is housed in a 10-pin SIP (Single Inline Package). It features two logic inputs that enable three distinct output modes: forward rotation, reverse rotation, and braking. This integrated circuit serves as a parallel motor driver interface.

Feature Summary

• Supports reversible operation for brush motors with forward, reverse, and braking modes
• Controlled via two logic inputs for simplified interface integration
• Built using CMOS technology for efficient power management

Applications

• Brushed DC motor control systems
• Reversible actuator drives
• Small appliance motor interfaces

Procurement Notes

Verify the package type is 10-SIP and confirm the manufacturer is ROHM Semiconductor. Ensure the part number matches BA6209N exactly. Check datasheet specifications for voltage limits and logic compatibility before integration. Confirm RoHS compliance status if required by project standards.

Selection Notes

Select this component when a simple reversible driver for brushed motors is required. It is suitable for applications needing forward, reverse, and braking functions controlled by standard logic signals. Consider the 6V-18V operating range and SIP packaging constraints during board layout design.

Part Context

The BA6209N belongs to ROHM's line of motor drivers and controllers. It is specifically categorized as a reversible motor driver intended for use with brush-type motors. The device provides a compact solution for bidirectional motor control in consumer electronics and industrial automation contexts.

Replacement Considerations

BD62120AEFJ-E2 is listed as a related product from the same manufacturer. Verify pinout compatibility and electrical specifications before substitution.
