Product Detailed Parameters

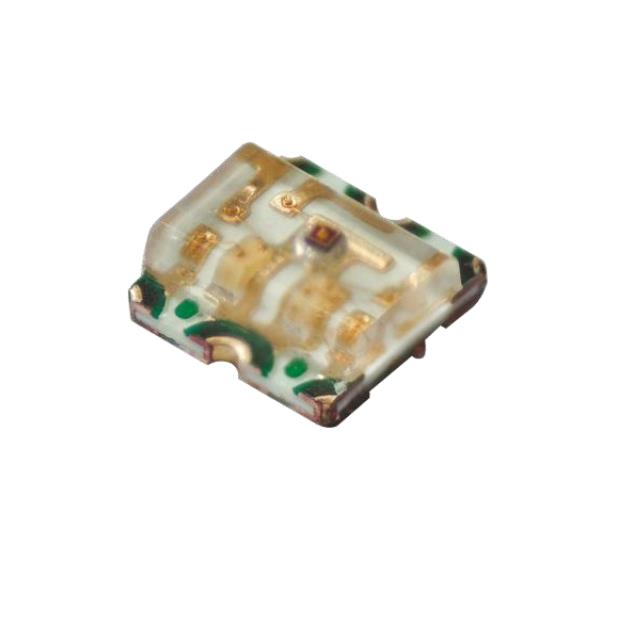

- Description：LED RGB CLEAR SMD
- Series：-
- Mfr：Solidlite
- Package：Retail Package
- Color：Red, Green, Blue (RGB)
- Configuration：Independent
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：125mcd Red, 340mcd Green, 50mcd Blue
- Lens Style：Rectangle with Flat Top
- Lens Size：1.20mm x 1.60mm
- Voltage - Forward (Vf) (Typ)：2V Red, 2.7V Green, 2.7V Blue
- Current - Test：5mA Red, 5mA Green, 5mA Blue
- Viewing Angle：140°
- Mounting Type：Surface Mount
- Wavelength - Dominant：621nm Red, 531nm Green, 471nm Blue
- Wavelength - Peak：-
- Features：-
- Package / Case：6-SMD, Flat Leads
- Supplier Device Package：-
- Size / Dimension：1.60mm L x 1.60mm W
- Height (Max)：0.70mm
- Grade：-
- Qualification：-
Download product information
Overview
The BAE0606A-3CL-005MA is a surface-mount RGB LED component manufactured by Solidlite. It features a compact 0606 package design suitable for space-constrained applications. The device integrates red, green, and blue emitters within a single unit to produce full-color output. It operates with a forward current of 5 mA per channel. The component supports RoHS compliance standards for environmental safety.
Feature Summary
- Integrates red, green, and blue emitters in a single surface-mount package
- Compact 0606 form factor designed for space-efficient PCB layouts
- Operates at a standard 5 mA forward current per color channel
- Complies with RoHS directives for restricted hazardous substances
Applications
- Status indication on electronic control boards
- Backlighting for small consumer device interfaces
- Decorative lighting modules requiring multi-color output
- Indicator lights in automotive interior panels
Procurement Notes
Verify the specific datasheet version when sourcing, as manufacturing revisions may occur. Confirm that the supplier provides genuine components with intact factory seals. Check for recent date codes to ensure optimal shelf life. Ensure the procurement channel is authorized to avoid counterfeit parts. Validate RoHS certification documentation upon receipt.
Selection Notes
Choose this component when a low-profile RGB solution is required for tight spatial constraints. The 0606 package offers a smaller footprint compared to larger discrete LED arrays. Select this part if the application design limits the drive current to 5 mA per channel. Consider this option for designs prioritizing standardized surface-mount assembly processes.
Part Context
This component belongs to Solidlite's range of surface-mount optoelectronic devices. It is categorized under multi-color LEDs designed for general indication purposes. The product line focuses on providing compact solutions for modern electronics manufacturing. It complements other single-color and dual-color LED offerings from the manufacturer.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify pinout compatibility and spectral characteristics before considering alternative manufacturers. Ensure any replacement matches the 0606 package dimensions and 5 mA operating current.
