BALF-CC26-05D3

$0.49

Description：BALUN 2.4GHZ-2.5GHZ 50/50 5UFBGA
Series：-
Mfr：STMicroelectronics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:c8ad6e014532 Category: Balun Brand: STMicroelectronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：BALUN 2.4GHZ-2.5GHZ 50/50 5UFBGA
Series：-
Mfr：STMicroelectronics
Package：Tape & Reel (TR),Cut Tape (CT)
Frequency Range：2.4GHz ~ 2.5GHz
Impedance - Unbalanced/Balanced：50 / 50Ohm
Phase Difference：-
Insertion Loss (Max)：1.2dB
Return Loss (Min)：-23dB
Package / Case：5-UFBGA, CSPBGA
Mounting Type：Surface Mount

Download product information

BALF-CC26-05D3

Overview

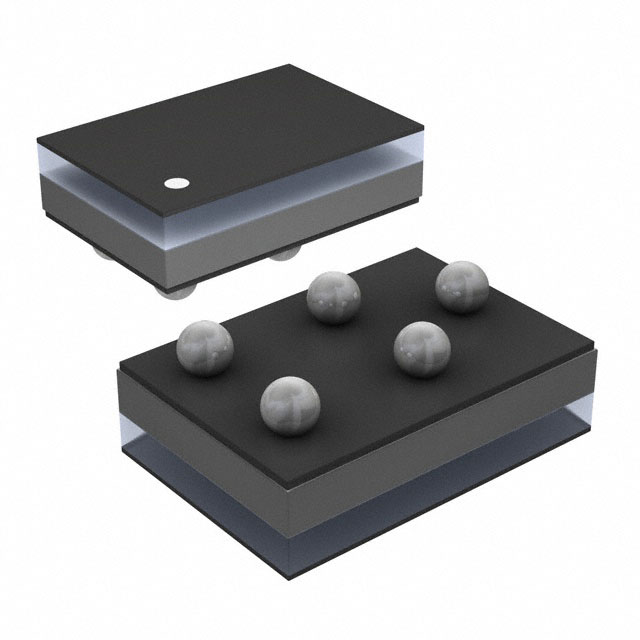

The BALF-CC26-05D3 is an ultra-miniature balun manufactured by STMicroelectronics, designed for surface mount applications. It integrates a matching network and harmonics filter within a single component. The device operates within a frequency range of 2.4 GHz to 2.5 GHz, with a maximum frequency specification of 2.54 GHz. It provides a 50 Ohm impedance match between unbalanced and balanced ports. The insertion loss is specified at 1.35 dB. The component utilizes a flip-chip package configuration.

Feature Summary

Integrates matching network and harmonics filter
Customized matching impedance for specific transceivers
Ultra-miniature form factor

Applications

Compatible with CC2610 transceivers
Compatible with CC2620 transceivers
Compatible with CC2630 transceivers
Compatible with CC2640 transceivers
Compatible with CC2650 transceivers

Procurement Notes

Verify the exact package type and pinout against the official STMicroelectronics datasheet before integration. Confirm that the customized matching impedance aligns with the specific requirements of the target CC26xx series device. Check for any last-time-buy notifications or end-of-life status associated with this component number to ensure long-term supply chain stability.

Selection Notes

Select this component when designing circuits for Texas Instruments CC26xx series wireless microcontrollers requiring a compact solution. The integrated filter reduces board space compared to discrete components. Ensure the design supports the 50 Ohm system impedance. Consider the flip-chip mounting method for PCB layout constraints.

Part Context

This balun belongs to STMicroelectronics' signal conditioning portfolio, specifically targeting low-power wireless applications. It serves as a passive RF component bridging the transceiver and antenna. The part is distinct from other baluns in the family due to its specific impedance matching tailored for CC26xx devices.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult STMicroelectronics for direct replacements if this component is discontinued.
