BAV19W

Single Diodes Overview

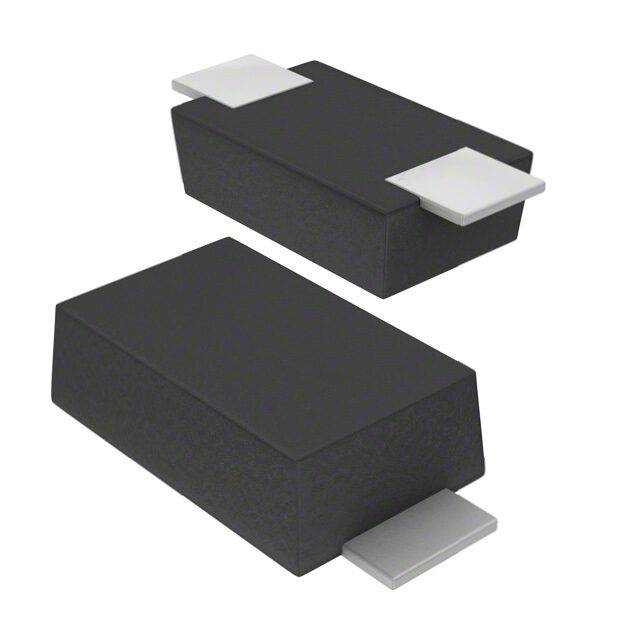

The BAV19W is a single surface-mount switching diode manufactured by Shenzhen Slkormicro Semicon Co., Ltd. It features a maximum repetitive peak reverse voltage of 100 V and a forward current rating of 200 mA. The device exhibits a typical forward voltage drop of 1.25 V at rated current and a fast switching time of 50 ns. Power dissipation is limited to specified thermal constraints within the SOD-123 package.

Single Diodes Feature Summary

• Fast switching capability with a 50 ns transition time for general-purpose applications
• Compact SOD-123 surface-mount package design
• High reverse voltage blocking up to 100 V

Single Diodes Applications

• General purpose switching circuits
• Surface mount fast switching applications
• Signal rectification in low-power electronics

Single Diodes Procurement Notes

Verify the manufacturer designation as Shenzhen Slkormicro Semicon Co., Ltd. when sourcing this component. Confirm the specific ordering suffix corresponds to the desired tape-and-reel or cut-tape packaging format. Ensure compliance with RoHS3 directives and check the MSL rating for handling requirements during assembly processes.

Single Diodes Selection Notes

Select this component for designs requiring compact footprint and moderate speed switching. The 200 mA current rating suits low-power signal paths. Evaluate thermal management needs based on the SOD-123 package power dissipation limits. Compare against standard silicon diodes if higher current or lower leakage is required.

Single Diodes Part Context

This part belongs to the family of surface-mount switching diodes offered by SlkorMicro. It serves as a discrete semiconductor solution for signal processing tasks. The product line targets cost-sensitive consumer and industrial electronics markets requiring reliable small-signal performance.

Single Diodes Replacement Considerations

BC850B is listed as a parameter equivalent alternative by the same manufacturer, though it is technically a transistor rather than a diode. Verify functional compatibility carefully before substitution.
