Product Detailed Parameters
- Description：DIODE STANDARD 150V 200MA SOD323
- Series：-
- Mfr：SMC Diode Solutions
- Package：Tape & Reel (TR)
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：150 V
- Current - Average Rectified (Io)：200mA
- Voltage - Forward (Vf) (Max) @ If：1 V @ 100 mA
- Speed：Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr)：50 ns
- Current - Reverse Leakage @ Vr：100 nA @ 150 V
- Capacitance @ Vr, F：5pF @ 0V, 1MHz
- Mounting Type：Surface Mount
- Package / Case：SC-90, SOD-323F
- Supplier Device Package：SOD-323
- Operating Temperature - Junction：-65°C ~ 150°C
- Grade：-
- Qualification：-
Download product information
Overview

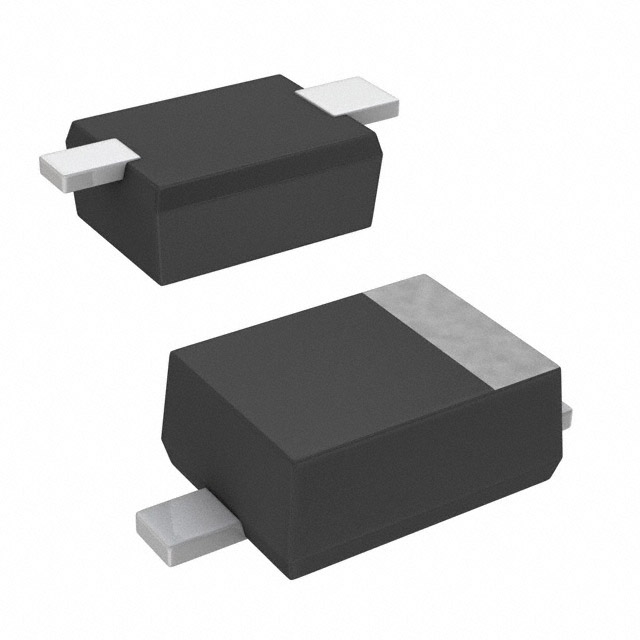

The BAV20WS is a small-signal switching diode manufactured by SMC Diode Solutions. It features a maximum repetitive peak reverse voltage of 120 V and an average forward rectified current of 200 mA. The device utilizes a glass-passivated chip junction within an SOD-323 surface-mount package. Key electrical characteristics include a reverse recovery time of 50 ns, a forward voltage of 1 V at 100 mA, and a reverse leakage current of 100 nA at 100 V. Capacitance is specified as 5 pF at 0 V and 1 MHz. The component operates within a junction temperature range of -65°C to 150°C.
Feature Summary
- Glass-passivated chip junction construction for enhanced reliability
- Fast reverse recovery time suitable for high-speed switching applications
- Surface-mount design optimized for automated placement processes
Applications
- General-purpose switching circuits
- High-frequency signal processing
- Automated surface-mount assembly lines
Procurement Notes
Verify the specific manufacturer designation when sourcing, as the suffix 'WS' may indicate different packaging or origin depending on the supplier. Confirm RoHS compliance status and ensure the package matches the required SOD-323 footprint. Cross-reference datasheets to validate electrical parameters against the intended circuit requirements before finalizing procurement.
Selection Notes
Select this component for applications requiring a compact surface-mount solution with fast switching capabilities. The 120 V reverse voltage rating provides adequate margin for low-voltage signal lines. Ensure the PCB layout accommodates the SOD-323 package dimensions and thermal constraints associated with the 200 mA current rating.
Part Context
This part belongs to the BAV series of small-signal switching diodes. It shares functional similarities with other variants in the family but differs in package type and specific voltage ratings. The SOD-323 form factor distinguishes it from larger through-hole or alternative surface-mount packages found in related product lines.
Replacement Considerations
BAV21WS
FAQ
What is the maximum repetitive peak reverse voltage?
The maximum repetitive peak reverse voltage is 120 V.
What package type does the BAV20WS use?
It uses the SOD-323 surface-mount package.
