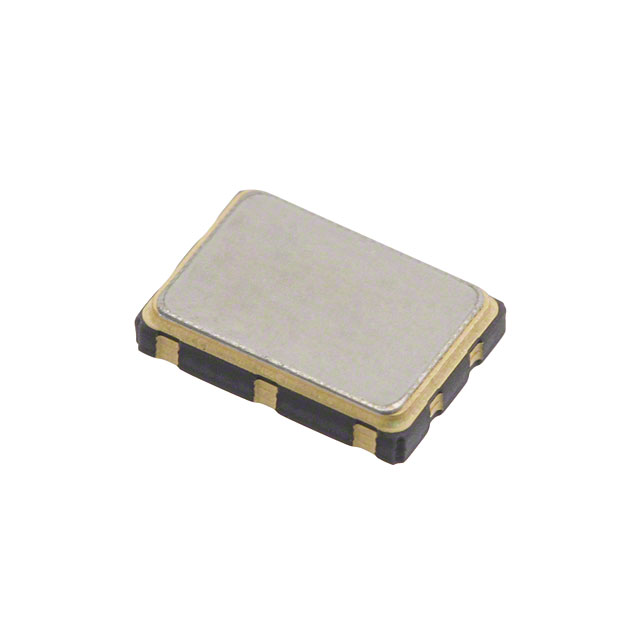

BB-75.000MBE-T

$4.19

Description：XTAL OSC XO 75.0000MHZ LVPECL
Series：BB
Mfr：TXC CORPORATION
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:2e63a6c6269e Category: Oscillators Brand: TXC CORPORATION

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

BB-75.000MBE-T is listed in the Oscillators range at ChipApex. The manufacturer field lists TXC CORPORATION. Its product description is XTAL OSC XO 75.0000MHZ LVPECL. Review the specifications below when checking this part for your BOM.

Oscillators specifications for BB-75.000MBE-T

Description：XTAL OSC XO 75.0000MHZ LVPECL
Series：BB
Mfr：TXC CORPORATION
Package：Tape & Reel (TR),Cut Tape (CT)
Base Resonator：Crystal
Type：XO (Standard)
Frequency：75 MHz
Function：Enable/Disable
Output：LVPECL
Voltage - Supply：3.3V
Frequency Stability：±50ppm
Absolute Pull Range (APR)：-
Operating Temperature：-40°C ~ 85°C
Spread Spectrum Bandwidth：-
Current - Supply (Max)：80mA
Ratings：-
Mounting Type：Surface Mount
Package / Case：6-SMD, No Lead
Size / Dimension：0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max)：0.059" (1.50mm)
Supplier Device Package：-

Oscillators datasheet and documents for BB-75.000MBE-T

BB-75.000MBE-T

Oscillators Overview

The BB-75.000MBE-T is a standard crystal oscillator manufactured by TXC Corporation, operating at a frequency of 75 MHz with a stability of ±50 ppm. It utilizes LVPECL output format and requires a 3.3V supply voltage. The device features enable/disable functionality and is housed in a 6-SMD, no lead package measuring 7.00mm x 5.00mm x 1.50mm. It supports surface mount installation and operates within a temperature range of -40°C to +85°C.

Oscillators Feature Summary

Provides differential LVPECL output signals for high-speed digital applications.
Includes enable and disable control pins for power management flexibility.
Utilizes a compact 6-pin SMD footprint suitable for space-constrained designs.

Oscillators Applications

High-speed data communication interfaces
Network synchronization equipment
Digital signal processing systems

Oscillators Procurement Notes

Verify component authenticity through authorized channels due to discontinuation status. Confirm RoHS3 compliance and MSL level 1 handling requirements during storage and assembly processes.

Oscillators Selection Notes

Select this model when LVPECL outputs are required for 75 MHz clocking. Ensure supply voltage matches 3.3V specifications and verify thermal constraints align with the -40°C to +85°C operational range.

Oscillators Part Context

This component belongs to the BB series of standard crystal oscillators from TXC Corporation. It represents a specialized timing solution designed for applications requiring precise frequency generation with low jitter characteristics in industrial environments.
