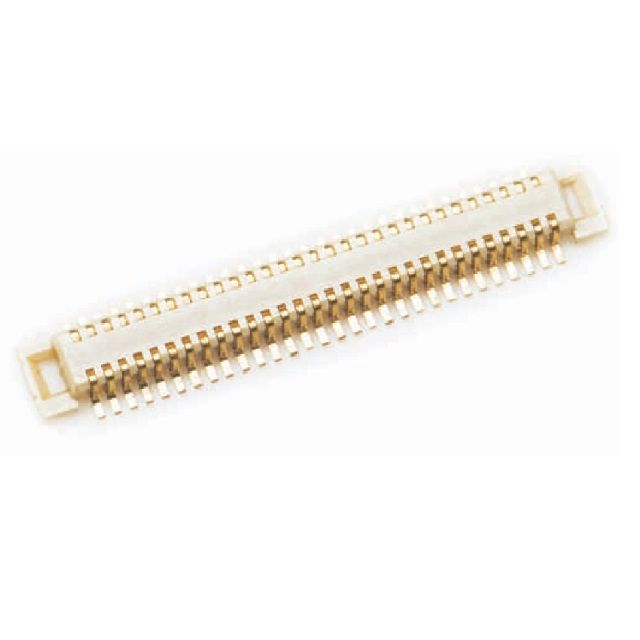

Arrays, Edge Type, Mezzanine (Board To Board) BBAF-040G1125NDLI-B product image

BBAF-040G1125NDLI-B

$1.94

Description：PLUG BTB 0.5MM PITCH - 40 POS SM
Series：BBAF
Mfr：SUPERIOR TECH
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:f4e0b0bb910b Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: SUPERIOR TECH

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

BBAF-040G1125NDLI-B is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists SUPERIOR TECH. Its product description is PLUG BTB 0.5MM PITCH - 40 POS SM. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for BBAF-040G1125NDLI-B

Description：PLUG BTB 0.5MM PITCH - 40 POS SM
Series：BBAF
Mfr：SUPERIOR TECH
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Plug, Outer Shroud Contacts
Number of Positions：40
Pitch：0.020" (0.50mm)
Number of Rows：2
Mounting Type：Surface Mount
Features：Board Guide
Contact Finish：Gold
Contact Finish Thickness：Flash
Mated Stacking Heights：1.6mm
Height Above Board：0.049" (1.25mm)
