BBD-106-G-A

Headers, Male Pins Overview

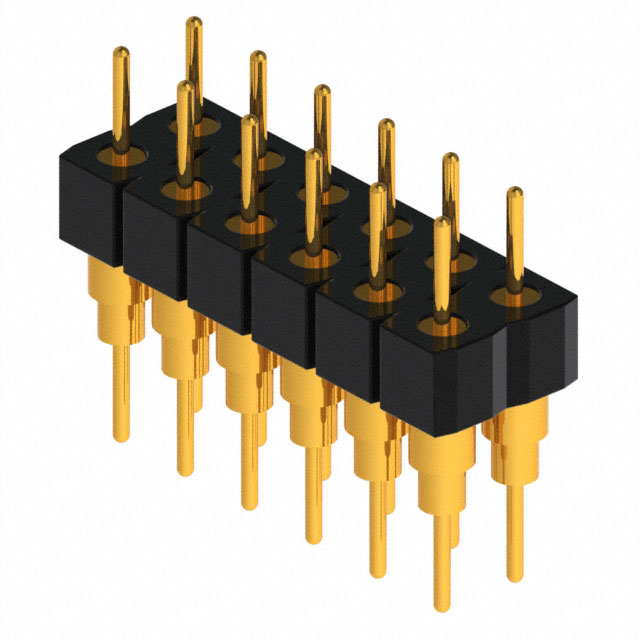

The Samtec BBD-106-G-A is a board stacking connector featuring a 2.54 mm pitch and 12 contacts arranged in two rows. It utilizes phosphor bronze terminals with gold plating over nickel barriers for reliable signal transmission. The component employs a through-hole termination style, ensuring secure mechanical attachment to printed circuit boards. Designed as a male header, it mates with female strip connectors to facilitate vertical board-to-board interconnections.

Headers, Male Pins Feature Summary

• Low-profile design enables tight board spacing when mated with compatible series strips
• Combines the reliability of permanent connections with the flexibility of separable interfaces
• Gold-plated phosphor bronze contacts ensure stable electrical performance

Headers, Male Pins Applications

• Board-to-board stacking applications
• Vertical interconnects in compact electronic assemblies
• High-density circuit board integration

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required contact count and row configuration. Confirm that the gold plating specification aligns with environmental requirements. Ensure the through-hole termination style is compatible with the target PCB manufacturing process. Cross-reference the mating partner series to guarantee proper interface compatibility.

Headers, Male Pins Selection Notes

Select this component when low-profile vertical stacking is required alongside standard 2.54 mm spacing. Consider the gold-plated phosphor bronze contacts for durability. Evaluate the mechanical constraints of the assembly to ensure the header height fits within the design envelope. Verify that the mating connector belongs to the compatible series for optimal engagement.

Headers, Male Pins Part Context

This component belongs to the BBD series of machined board stacking strips from Samtec. These connectors are engineered to provide robust interconnection solutions while maintaining a compact footprint. The series supports various configurations to accommodate different density and spacing requirements in modern electronics.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Samtec BBD series headers with matching pin counts and pitch. Verify that any alternative maintains the same through-hole termination and gold plating specifications to ensure interchangeability.
