BBD-116-G-C

Headers, Male Pins Overview

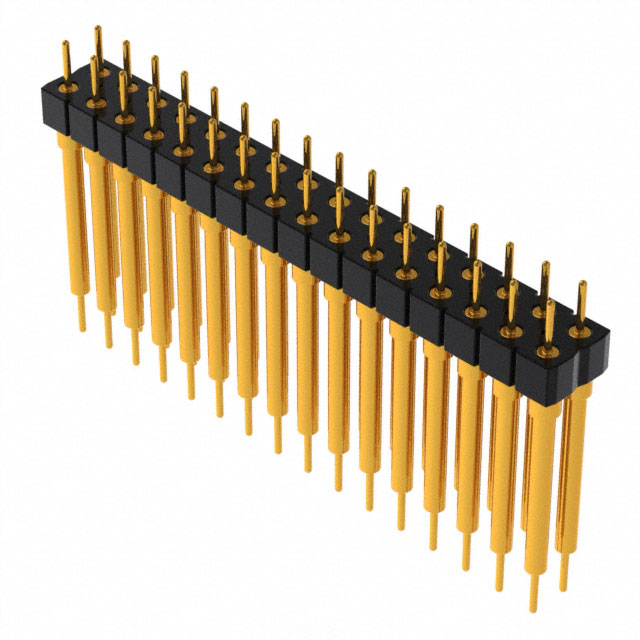

The BBD-116-G-C is a vertical header connector manufactured by Samtec Inc., featuring 32 positions arranged in a double-row configuration. It utilizes a 0.100-inch (2.54mm) pitch and is designed for through-hole termination. The connector employs mechanical pin contacts with gold plating on the mating interface and nickel plating on the tail, ensuring reliable electrical performance. Constructed from polyester glass-reinforced insulation, it supports a wide operating temperature range of -55°C to 125°C. This board-to-board style component is available in tube packaging.

Headers, Male Pins Feature Summary

• Double-row design accommodating 32 contact positions for high-density interconnect applications
• Mechanical pin contact system ensures secure retention and reliable signal transmission
• Gold-plated mating surfaces provide corrosion resistance and low contact impedance

Headers, Male Pins Applications

• Board-to-board stacking connections
• High-density electronic assembly interconnects
• Industrial control system circuit boards

Headers, Male Pins Procurement Notes

Verify the specific suffix designation to confirm terminal plating and material specifications, as variations exist within the BBD series. Confirm that the required quantity aligns with the manufacturer's standard tube packaging dimensions. Ensure compatibility with existing PCB footprint designs before finalizing procurement orders to avoid integration issues.

Headers, Male Pins Selection Notes

Select this component when a vertical, double-row header with mechanical pins is required for rigid board-to-board connections. The 2.54mm pitch suits general-purpose digital and power distribution needs. Consider the through-hole mounting requirement and verify that the 8.51mm insulation height fits within the available spatial constraints of the target assembly.

Headers, Male Pins Part Context

This part belongs to the BBD series of .100" double-row headers from Samtec. These connectors are characterized by their spiral mechanical pin construction, which offers robust retention without soldering the pins themselves during assembly. The series provides a cost-effective solution for standard density interconnects requiring durable mechanical stability.

Headers, Male Pins Replacement Considerations

Direct substitutes include variants such as BBD-116-G-B and BBD-116-G-G, which share identical form factors but differ in terminal plating or material composition. Verify that any replacement maintains the same 32-position count and 2.54mm pitch to ensure mechanical fit.
