BBL-122-G-F

Headers, Male Pins Overview

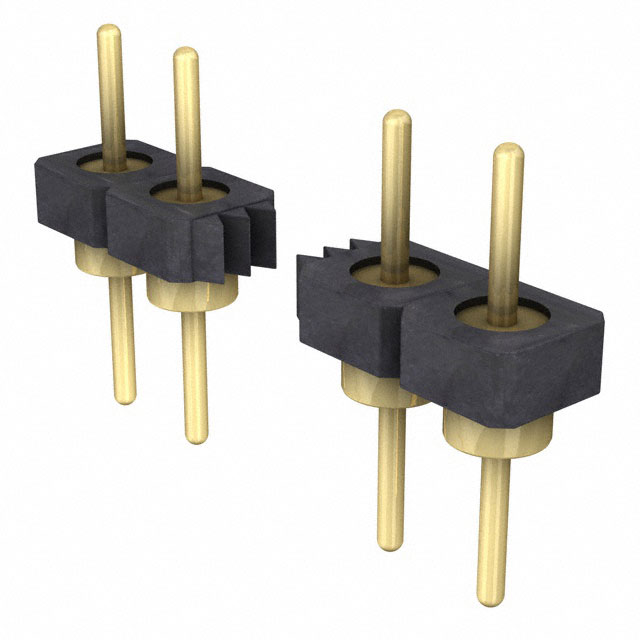

The BBL-122-G-F is a low profile single row screw machine terminal strip manufactured by Samtec Inc. It features a .100 inch (2.54 mm) pitch and contains 22 positions. The connector utilizes machined terminals and is designed for through-hole mounting. The housing height is specified at 0.085 inches (2.15 mm). This component serves as a board-to-board header, providing a secure form factor for integrating components from diverse open-system vendors.

Headers, Male Pins Feature Summary

• Low profile single row design to improve integration success rates
• Machined terminal contact system for reliable connection
• Through-hole mounting configuration for secure board attachment

Headers, Male Pins Applications

• Board-to-board interconnections
• Integration of components from diverse open-system vendors
• Low profile single row applications requiring machined terminals

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Samtec documentation to ensure correct material and plating specifications. Confirm that the through-hole footprint matches the target PCB layout. Check compliance declarations such as RoHS and UL recognition if required for the end application. Ensure the low profile height constraints are met within the assembly envelope.

Headers, Male Pins Selection Notes

Select this part when a low profile single row header with machined terminals is required. The 22-position count and .100 inch pitch define the electrical interface. Consider the through-hole mounting method for mechanical stability. Verify that the 0.085 inch height fits within the available vertical space in the design.

Headers, Male Pins Part Context

This component belongs to the BBL series of low profile single row screw machine terminal strips. The series offers pitch availability ranging from 1mm to 4.19mm and supports up to 32 positions. It is designed to mate with corresponding socket strips for robust electronic connections.

Headers, Male Pins Replacement Considerations

Consult the official Samtec catalog for direct substitutes within the BBL series or compatible mating connectors such as HTS or TS series headers. Verify pin count and pitch compatibility before substitution.
