BBP-150+

Overview

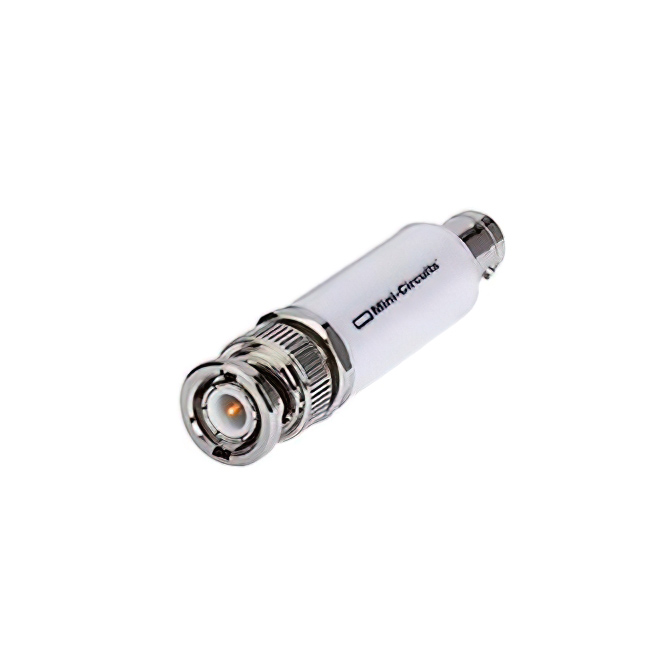

The BBP-150+ is a lumped LC bandpass filter manufactured by Mini-Circuits, designed for signal conditioning applications. It operates within a frequency range of 140 MHz to 160 MHz, providing a 20 MHz bandwidth centered at 150 MHz. The component features a 50 Ohm impedance and utilizes a connectorized package with BNC interfaces. It is engineered to pass signals within the specified band while rejecting out-of-band interference.

Feature Summary

• Utilizes lumped LC technology for precise frequency selection
• Provides effective rejection of unwanted out-of-band signals
• Features a shielded case design for signal integrity

Applications

• Harmonic rejection in RF systems
• Transmitter and receiver circuits
• Industrial microwave and RF equipment
• Telecommunication and broadband networks

Procurement Notes

Verify the specific datasheet version for insertion loss and VSWR specifications relevant to your design. Confirm that the BNC connectorized package aligns with your system interface requirements. Ensure environmental ratings meet operational temperature constraints.

Selection Notes

Select this component when a fixed center frequency of 150 MHz is required with a 20 MHz bandwidth. The 50 Ohm impedance matches standard RF transmission lines. Consider the connectorized form factor if discrete PCB mounting is not preferred over inline module integration.

Part Context

This part belongs to the BBP series of surface-mount and connectorized bandpass filters from Mini-Circuits. These filters are designed using lumped LC technology to offer compact solutions for filtering applications across various RF frequencies.

Replacement Considerations

Consult official Mini-Circuits documentation for direct substitutes. Alternative models may include different bandwidths or impedance values; verify electrical compatibility before substitution.
