BBS-109-G-D

Headers, Male Pins Overview

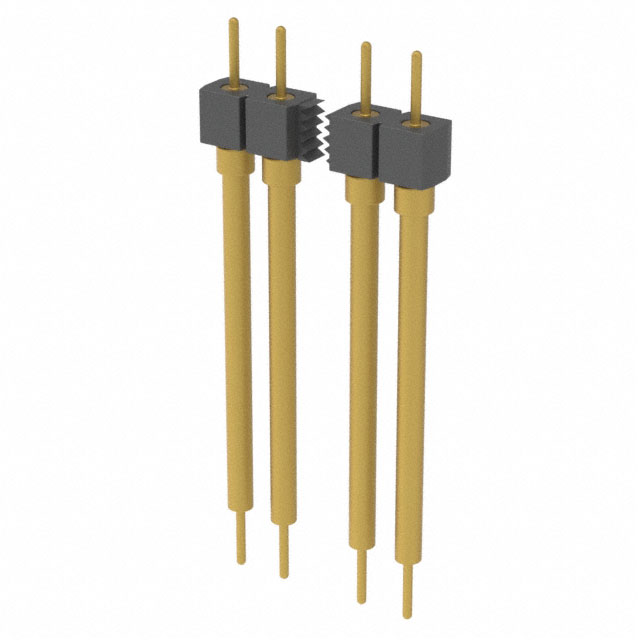

The BBS-109-G-D is a 9-position vertical header connector manufactured by Samtec Inc., designed for board-to-board connections in electronic applications. It features a .100 inch (2.54 mm) pitch and utilizes through-hole termination for secure PCB mounting. The component is configured as a single-row header with male contacts, providing a reliable interface for stacking or mating with corresponding socket strips.

Headers, Male Pins Feature Summary

• Vertical orientation design facilitates direct board-to-board interconnection
• Through-hole termination ensures robust mechanical attachment to the substrate
• Single-row configuration supports compact stacking arrangements

Headers, Male Pins Applications

• Board-to-board interconnects
• Stacking circuit assemblies
• Electronic module integration

Headers, Male Pins Procurement Notes

Verify that the specific suffix G-D corresponds to the required contact plating and row configuration. Confirm that the 9-position count aligns with the target circuit design. Ensure the vertical header form factor matches the spatial constraints of the assembly. Cross-reference the datasheet specifications against the intended operating environment requirements before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a vertical, single-row header with through-hole pins is required. The .100 inch pitch is standard for general-purpose board stacking. Consider the 9-contact length relative to available board space. Ensure mating parts are compatible with the specified header type for proper engagement.

Headers, Male Pins Part Context

This part belongs to the BBS series of stacking board connectors from Samtec. These headers are engineered for high-reliability applications requiring precise alignment between stacked printed circuit boards. The series offers various configurations to accommodate different pin counts and termination styles.

Headers, Male Pins Replacement Considerations

Consult official Samtec documentation for verified substitute part numbers. Generic equivalents may not match the specific dimensional tolerances or contact plating characteristics required for this application.
