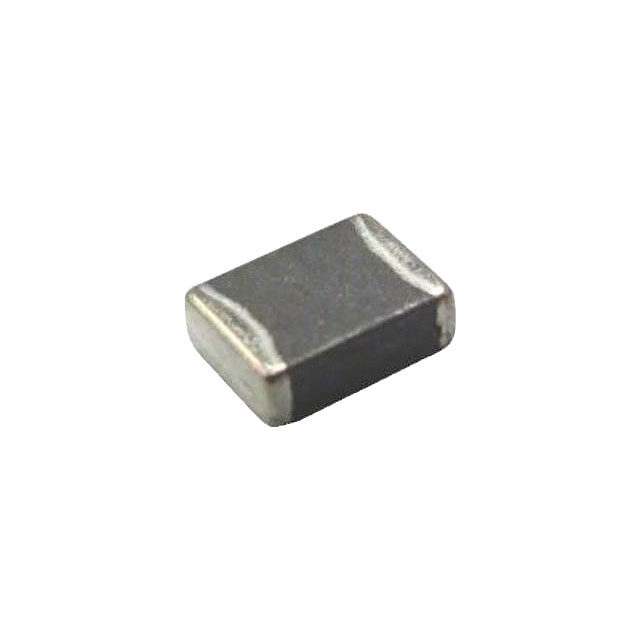

BBSY00060303601Y00

$0.09

Description：FERRITE BEAD 600 OHM 0201 1LN
Series：BBSY
Mfr：Pulse Electronics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:5bbcb1470e17 Category: Ferrite Beads and Chips Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE BEAD 600 OHM 0201 1LN
Series：BBSY
Mfr：Pulse Electronics
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：-
Number of Lines：1
Impedance @ Frequency：600 Ohms @ 100 MHz
Current Rating (Max)：100mA
DC Resistance (DCR) (Max)：1.5Ohm
Ratings：-
Operating Temperature：-55°C ~ 125°C
Package / Case：0201 (0603 Metric)
Mounting Type：Surface Mount
Height (Max)：0.013" (0.33mm)
Size / Dimension：0.024" L x 0.012" W (0.60mm x 0.30mm)
Features：-

Download product information

BBSY00060303601Y00

Overview

The BBSY00060303601Y00 is a miniature multilayer ferrite chip bead manufactured by Pulse Electronics. It features a shielded SMD/SMT construction in a 0201 (0603 metric) package with dimensions of 0.6 mm x 0.6 mm x 0.3 mm. The component provides an impedance of 600 Ohms at 100 MHz and has a maximum DC resistance of 0.52 Ohms. It supports a maximum DC current of 100 mA and operates within a temperature range of -55°C to +125°C.

Feature Summary

Shielded multilayer ferrite construction for effective noise suppression
Miniature 0201 footprint suitable for high-density PCB layouts
High impedance value for targeted RF interference filtering

Applications

RF signal line filtering
Power supply noise suppression in compact devices
EMI reduction in mobile electronics

Procurement Notes

Verify the specific impedance tolerance and DC current rating against the official datasheet before integration. Confirm that the 0201 package dimensions align with the target PCB land pattern. Ensure the operating temperature range meets the environmental requirements of the final assembly. Cross-reference the manufacturer part number to avoid confusion with similar series components.

Selection Notes

Select this component when high impedance is required in a minimal footprint. The shielded design reduces magnetic field emission compared to unshielded beads. Consider the 100 mA current limit for power integrity analysis. The low DC resistance minimizes voltage drop in sensitive circuits. Verify compatibility with standard reflow soldering profiles for 0201 packages.

Part Context

This part belongs to the BBSY series of miniature ferrite beads from Pulse Electronics. The series focuses on providing noise suppression in space-constrained applications. The BBSY series utilizes multilayer ceramic technology for consistent performance. It complements larger ferrite beads by offering solutions for dense modern electronics.
