BC035-72-A-0380-0300-L-G

Headers, Male Pins Overview

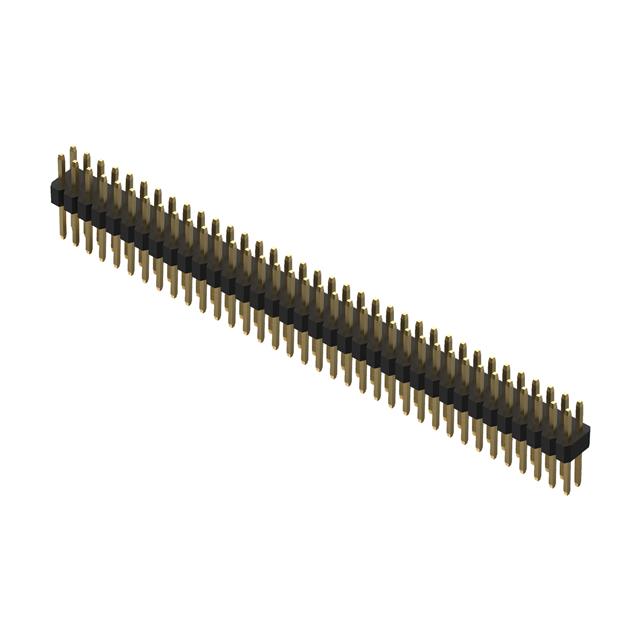

The BC035-72-A-0380-0300-L-G is a board-to-board and mezzanine connector header manufactured by GCT. It features a 72-position configuration with a 1.0mm pitch. The component utilizes a double in-line (DIL) pin header design intended for vertical through-hole mounting. The housing includes gold flash plating and is supplied in box packaging.

Headers, Male Pins Feature Summary

• Vertical through-hole mounting configuration
• Double in-line pin header design
• Gold flash plated contacts

Headers, Male Pins Applications

• Board-to-board interconnections
• Mezzanine circuit connections
• High-density electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official manufacturer documentation to confirm exact plating thickness, contact material specifications, and packaging quantities. Ensure the selected variant matches the required mechanical height and thermal performance criteria for the target application environment.

Headers, Male Pins Selection Notes

Select this component when a high-density 1.0mm pitch connection is required for vertical board stacking. Confirm that the PCB layout supports the double in-line footprint and that the through-hole process accommodates the specified terminal dimensions without compromising signal integrity or mechanical stability.

Headers, Male Pins Part Context

This part belongs to the BC035 series of rectangular connectors from GCT. The series offers various position counts and pitch options designed for compact electronic designs. This specific model represents a 72-position variant optimized for applications requiring robust vertical interconnects with precise alignment capabilities.

Headers, Male Pins Replacement Considerations

Consult official cross-reference lists for verified substitute part numbers. Generic equivalents may differ in critical mechanical tolerances or contact plating specifications. Validate compatibility with existing mating connectors before implementation.
