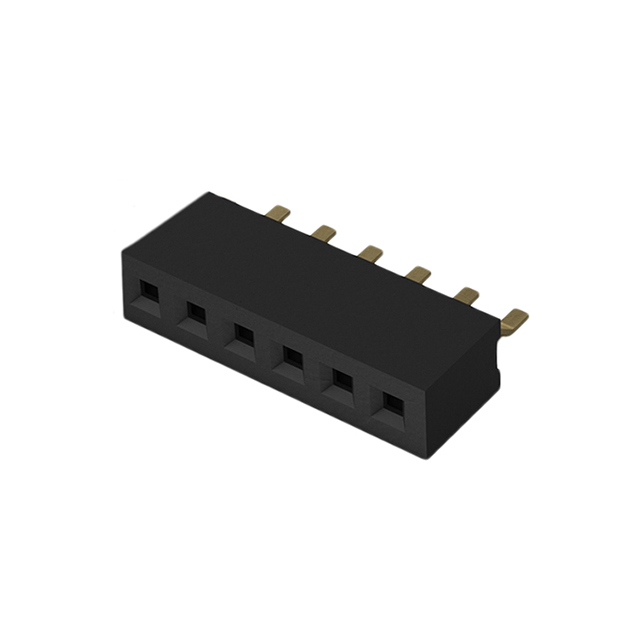

BC075-06-A-L-A

BC075-06-A-L-A is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists GCT. Its product description is 6POS 1.0MM PITCH SOCKET, SIL, SM. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for BC075-06-A-L-A

• Description：6POS 1.0MM PITCH SOCKET, SIL, SM
• Series：BC075
• Mfr：GCT
• Package：Tape & Reel (TR),Cut Tape (CT)
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：6
• Number of Positions Loaded：All
• Pitch - Mating：0.039" (1.00mm)
• Number of Rows：1
• Row Spacing - Mating：-
• Mounting Type：Surface Mount, Right Angle
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：Flash
• Insulation Color：Black
• Insulation Height：0.059" (1.50mm)
• Contact Length - Post：-
• Operating Temperature：-40°C ~ 105°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Gold
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：1A per Contact
• Voltage Rating：250V

Headers, Receptacles, Female Sockets datasheet and documents for BC075-06-A-L-A
