BC817DS-QX

Overview

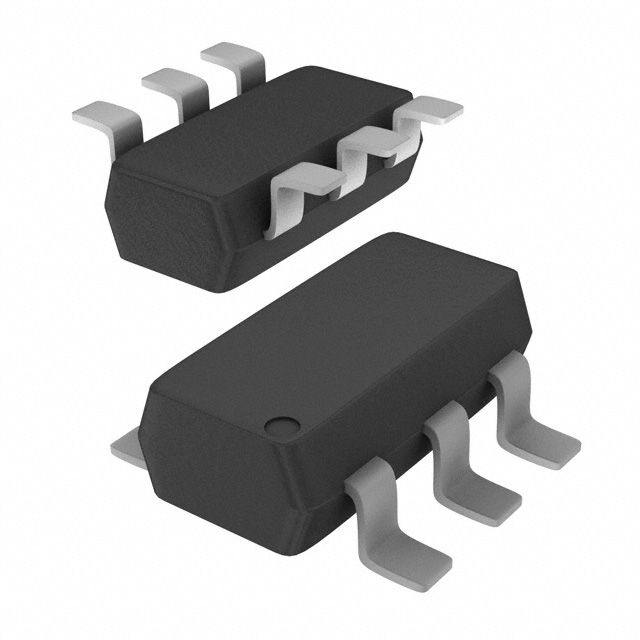

The BC817DS-QX is an NPN general-purpose double transistor manufactured by Nexperia. It features a dual configuration within a compact surface-mount package, designed for high current applications with a maximum DC collector current of 500 mA. The device supports a collector-emitter voltage (VCEO) of 45 V and a collector-base voltage (VCBO) of 50 V. Key electrical parameters include a minimum DC current gain (hFE) of 40 and a transition frequency (fT) of 100 MHz. Power dissipation reaches 600 mW total, with an operating temperature range from -65°C to +150°C. The component complies with RoHS standards and meets AEC-Q101 automotive qualification requirements.

Feature Summary

• Dual NPN transistor configuration reduces component count in circuit designs
• High current capability suitable for demanding switching applications
• Automotive-grade reliability through AEC-Q101 qualification

Applications

• General-purpose switching circuits
• Amplification stages in electronic systems
• Automotive electronics requiring robust performance

Procurement Notes

Verify the specific suffix QX against official Nexperia documentation to confirm packaging details and availability status. Ensure compliance with RoHS directives and AEC-Q101 automotive standards matches project requirements before procurement. Cross-reference datasheet revisions to confirm parameter consistency.

Selection Notes

Select this component when space constraints require a dual NPN solution. Verify that the 500 mA current rating and 45 V voltage limits align with circuit demands. Consider the 600 mW power dissipation capability for thermal management planning. Confirm compatibility with automated optical inspection processes if required.

Part Context

This part belongs to the BC817 series of NPN general-purpose transistors. It serves as the dual-transistor variant of the single BC817 model. The series offers multiple gain selections and complements the BC807 PNP counterparts. Designed for surface-mount technology, it supports modern manufacturing techniques.

Replacement Considerations

Direct substitutes include other BC817DS variants from Nexperia or equivalent dual NPN transistors from manufacturers like Diodes Incorporated or onsemi. Verify pinout compatibility and electrical specifications match exactly before substitution.
