BC847T,115

Overview

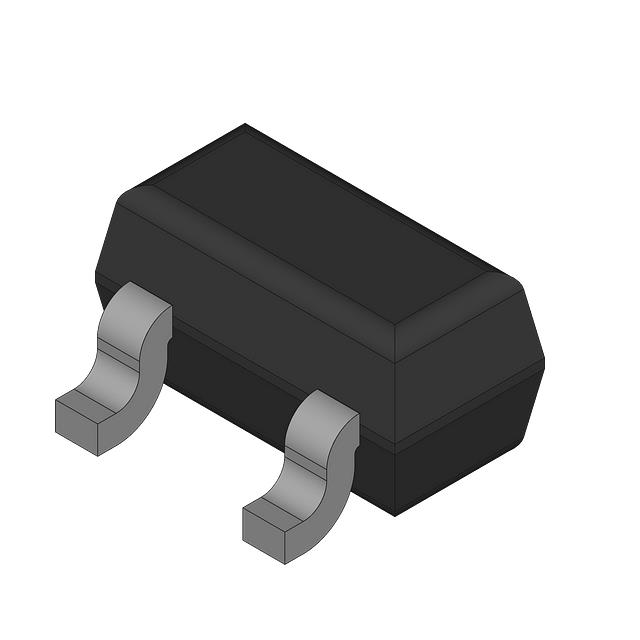

The BC847T,115 is a general-purpose NPN transistor manufactured by Nexperia USA Inc. It operates with a maximum collector current of 100 mA and a collector-emitter voltage rating of 45 V. The device utilizes an SOT-323 (SC-70) surface-mount package. Key electrical parameters include a transition frequency of 100 MHz and a power dissipation capacity of 200 mW. The component features a minimum DC current gain (hFE) of 110 at specified test conditions.

Feature Summary

• General-purpose switching and amplification capabilities
• Small SMD plastic package for board space reduction
• Three different gain selections available within the series

Applications

• General-purpose switching circuits
• Amplifier applications
• Automotive electronics (qualified variants)

Procurement Notes

Verify the specific suffix against official Nexperia documentation to confirm exact gain binning and packaging configuration. Ensure compatibility with target operating temperatures and validate RoHS compliance status prior to integration into final designs.

Selection Notes

Select this component for low-power general-purpose tasks requiring compact surface-mount solutions. Compare hFE requirements against application needs, as the series offers multiple gain options. Confirm thermal management strategies align with the 200 mW power dissipation limit in the SOT-323 package.

Part Context

This part belongs to the BC847x family of NPN general-purpose transistors. It serves as a complement to PNP devices like the BC857 series. The T suffix typically denotes specific tape-and-reel packaging configurations within the standard product line.

Replacement Considerations

Compatible substitutes include BC847A,115 and BC847B,115 from the same manufacturer. Cross-reference datasheets to ensure pinout and electrical characteristics match the original design requirements.
