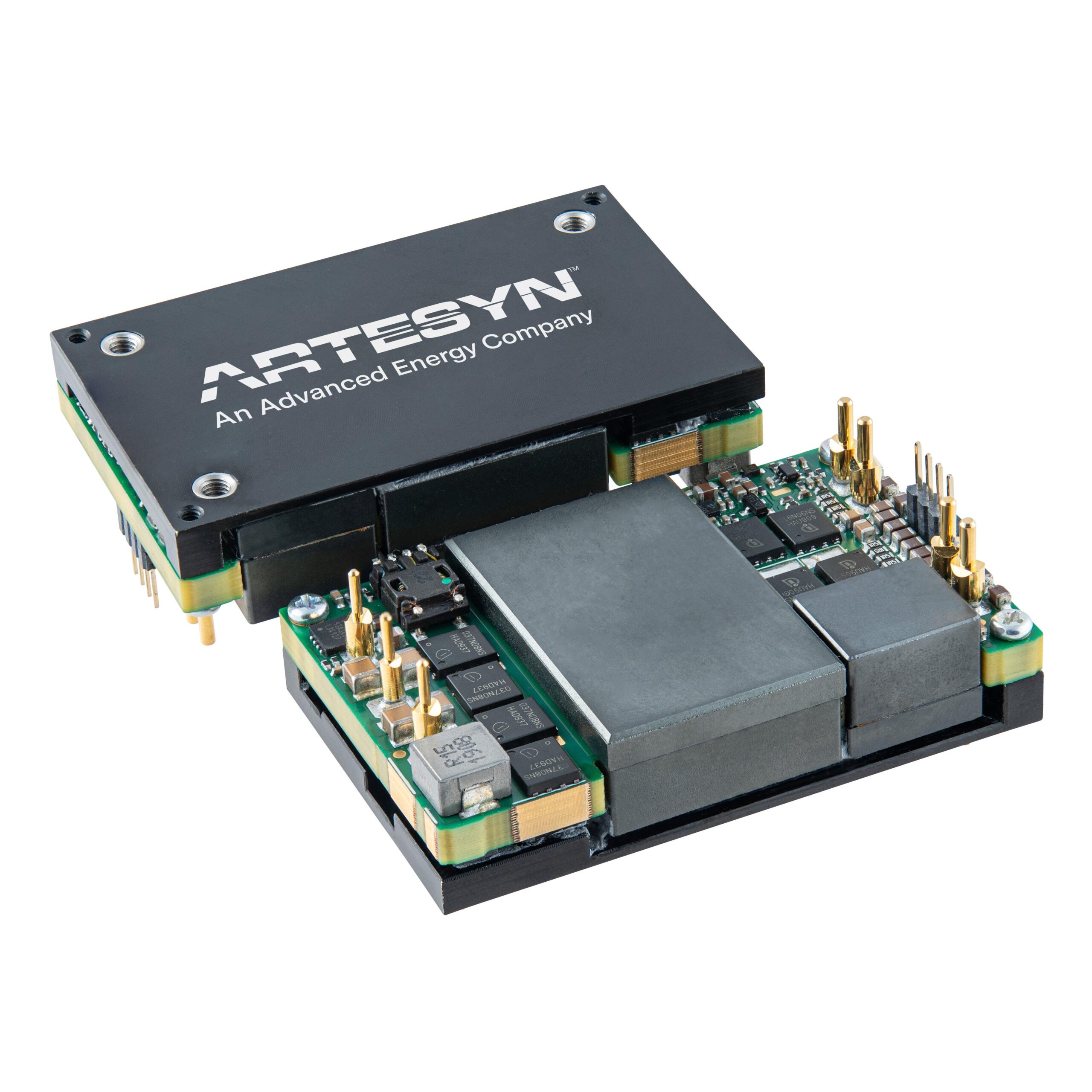

BCQ1300-48S12B-4L

BCQ1300-48S12B-4L is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is DC DC CNVRTR 9.6-14.5 V 1305W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for BCQ1300-48S12B-4L

• Description：DC DC CNVRTR 9.6-14.5 V 1305W
• Series：BCQ1300 (1300W)
• Mfr：ARTESYN / Advanced Energy
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：40V
• Voltage - Input (Max)：60V
• Voltage - Output 1：9.6 ~ 14.5 V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：90A
• Power (Watts)：1305 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Baseplate, Remote On/Off
• Operating Temperature：-40°C ~ 85°C
• Efficiency：97.70%
• Mounting Type：Through Hole
• Package / Case：Quarter Brick
• Size / Dimension：2.30" L x 1.45" W x 0.57" H (58.4mm x 36.8mm x 14.5mm)
• Supplier Device Package：Quarter Brick
• Control Features：Enable, Active Low
• Approval Agency：CE, TUV, UL
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for BCQ1300-48S12B-4L
