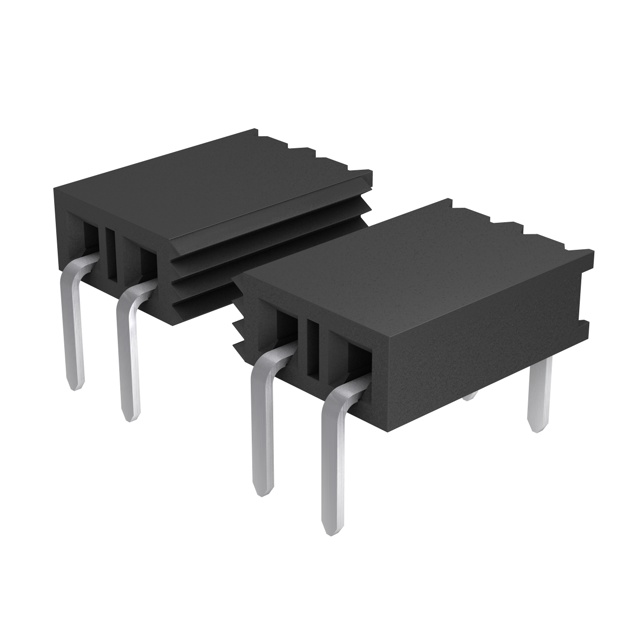

BCS-107-F-S-HE

BCS-107-F-S-HE is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN RCPT 7POS 0.1 GOLD PCB R/A. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for BCS-107-F-S-HE

• Description：CONN RCPT 7POS 0.1 GOLD PCB R/A
• Series：Tiger Claw™ BCS
• Mfr：Samtec Inc.
• Package：Tube,Tube
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：7
• Number of Positions Loaded：All
• Pitch - Mating：0.100" (2.54mm)
• Number of Rows：1
• Row Spacing - Mating：-
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：3.00µin (0.076µm)
• Insulation Color：Black
• Insulation Height：0.110" (2.79mm)
• Contact Length - Post：0.125" (3.18mm)
• Operating Temperature：-55°C ~ 125°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：4.6A per Contact
• Voltage Rating：475VAC

Headers, Receptacles, Female Sockets datasheet and documents for BCS-107-F-S-HE
