BD4831FVE-TR

Overview

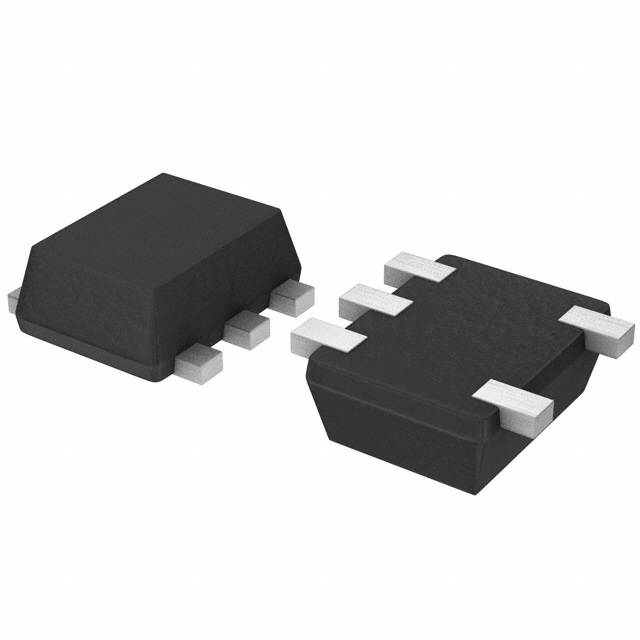

The BD4831FVE-TR is a CMOS voltage detector manufactured by ROHM Semiconductor, designed for monitoring single-input supply voltages. It features an open-drain output and operates within a maximum supply voltage of 10 V. The device provides a typical threshold voltage of 3.1 V with 1% accuracy and includes a fixed reset delay time of 100 µs. It lacks manual reset, watchdog timer, or battery backup functions. Operating temperatures range from -40°C to +105°C, and it is housed in a VSOF-5 surface-mount package.

Feature Summary

• CMOS technology enables low power consumption for efficient voltage supervision.
• Open-drain output interface allows flexible connection to various logic systems.
• Fixed reset delay ensures consistent timing response during voltage transitions.

Applications

• General-purpose voltage monitoring in electronic circuits
• Power supply supervision for microcontrollers and digital logic
• System reset generation in embedded applications

Procurement Notes

Verify component authenticity through authorized channels due to end-of-life status. Confirm RoHS compliance details via official datasheets. Check regional availability restrictions as distribution may be limited. Validate package integrity upon receipt. Ensure design compatibility with existing system requirements before procurement.

Selection Notes

Select this component for applications requiring precise voltage detection without complex features like watchdog timers. Consider the open-drain output configuration for interface compatibility. Evaluate thermal performance within the specified operating temperature range. Verify that the fixed reset delay meets system timing requirements.

Part Context

Part of the BD48 series of standard voltage detectors. Designed for general industrial and commercial applications. Manufactured using CMOS processes for reliability. Part number suffix indicates tape-and-reel packaging format.

Replacement Considerations

BD5231G-1 is listed as a similar specification replacement with comparable pinout and electrical characteristics. Verify functional equivalence before substitution.
