BD521VNVX-2CTL

Overview

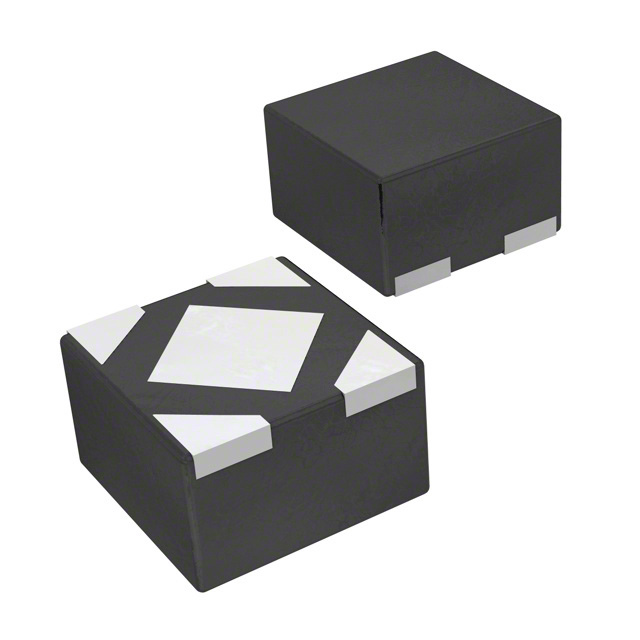

The BD521VNVX-2CTL is a Nano Energy™ automotive-grade CMOS voltage detector IC with a typical detection voltage of 0.965V. It features an adjustable reset delay timer controlled by an external capacitor, maintaining ±50% accuracy from -40°C to 125°C. The device utilizes an Nch open-drain output and operates within a reset active voltage range of 0.8V to 6V. Key electrical parameters include a circuit current of 0.23µA (ON) and 0.27µA (OFF), hysteresis of VDET x 0.05, and low output currents of 0.17mA (Low) and 1mA (High). It is housed in an SSON004R1010 package.

Feature Summary

• Nano Energy™ technology for ultra-low power consumption
• Adjustable reset delay time via external capacitor
• Automotive grade AEC-Q100 qualification

Applications

• Automotive system reset monitoring
• Voltage supervision in harsh temperature environments
• Functional safety support applications

Procurement Notes

Verify the specific suffix 'CTL' against the manufacturer's official ordering guide to confirm package type and tape/reel specifications. Ensure compatibility with the required detection voltage tolerance and delay timing requirements for the target automotive application before finalizing procurement.

Selection Notes

Select this component when a precise 0.965V threshold is required for automotive systems. The adjustable delay feature allows customization without changing part numbers. Consider the SSON004R1010 package size constraints and the Nch open-drain output capability for interfacing with downstream logic circuits.

Part Context

This part belongs to ROHM's Nano Energy™ series of CMOS voltage detectors designed for automotive use. It offers flexible delay settings and high precision across wide temperature ranges, supporting functional safety analysis as an FS supportive product.

Replacement Considerations

Consult official substitution lists for equivalent detection voltages and packages. Generic replacements may lack the specific Nano Energy™ characteristics or automotive qualification.
