BD6231HFP-TR

Overview

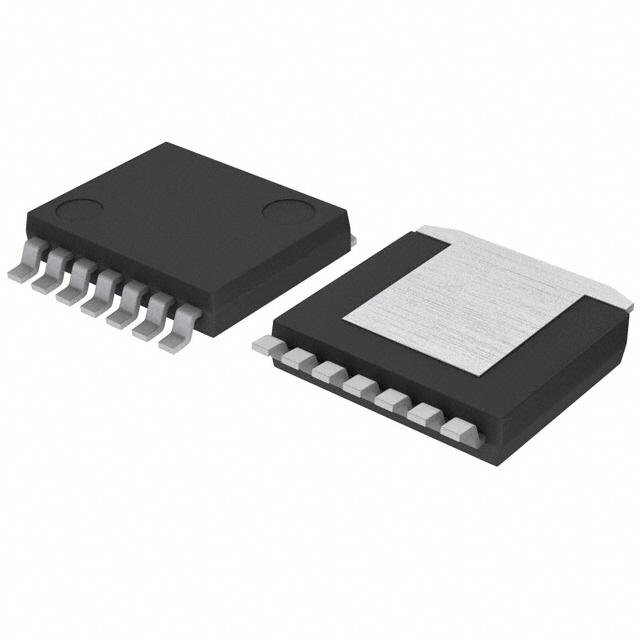

The BD6231HFP-TR is a single-channel H-bridge driver designed for brushed DC motors, manufactured by ROHM Semiconductor. It operates within a power supply voltage range of 6V to 32V and supports a maximum output current of 1A. The device utilizes Power MOSFET transistors in the output stage, providing a typical on-resistance of 1.5Ω. It features an HRP7 surface-mount package with dimensions of 9.395mm x 10.54mm. The component functions reliably across an operating temperature range from -40°C to +85°C.

Feature Summary

• Integrated single H-bridge circuit configuration for direct brushed motor control
• Built-in comprehensive protection mechanisms including overcurrent, overvoltage, thermal shutdown, undervoltage lockout, and short-circuit safeguards
• Supports PWM input signals for precise speed and direction regulation

Applications

• Brushed DC motor drive systems
• Small appliance motion control
• Industrial automation actuators
• Consumer electronics motor interfaces

Procurement Notes

Verify the specific suffix '-TR' confirms the tape-and-reel packaging format required for automated assembly processes. Ensure the ordering part number matches the exact pinout and electrical specifications documented in the official ROHM datasheet. Confirm RoHS compliance status and environmental restrictions relevant to the target market. Cross-reference the HRP7 package dimensions against PCB footprint requirements to ensure mechanical compatibility during procurement validation.

Selection Notes

Select this component when a single-channel H-bridge solution is required for brushed DC motors operating between 6V and 32V. It is suitable for applications demanding up to 1A continuous current with integrated protection features. Consider the HRP7 package size for space-constrained designs. Verify that the thermal performance under expected load conditions aligns with the system's heat dissipation capabilities before finalizing the selection.

Part Context

This part belongs to the BD623XHFP series of high-current H-bridge drivers from ROHM. It shares pin compatibility with other members of the family, facilitating design upgrades or replacements within existing hardware architectures. The series is characterized by robust output stages and extensive protection circuits tailored for reliable motor operation in various consumer and industrial environments.

Replacement Considerations

The BD62321HFP is a compatible alternative offering higher current capacity (3A) while maintaining pin compatibility. For lower current requirements, the BD6231F-E2 serves as a variant with similar electrical characteristics but may differ in packaging or reel specifications. Verify functional equivalence and thermal limits when substituting.
