Product Detailed Parameters

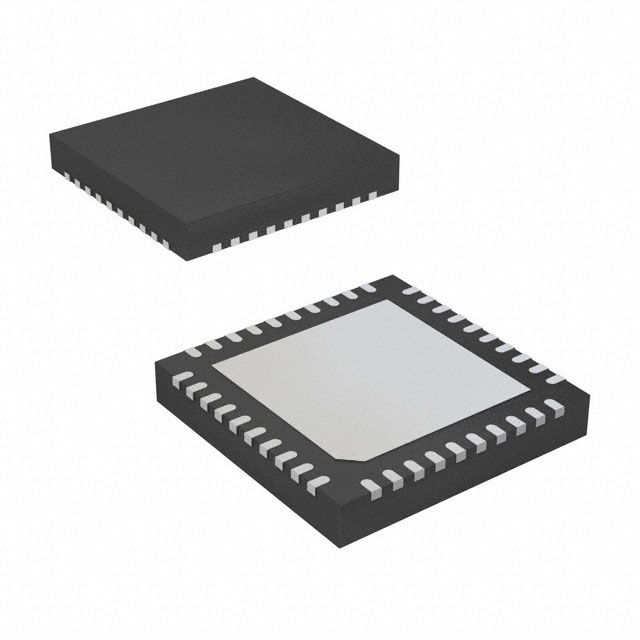

- Description：BD63007MUV IS A THREE-PHASE BRUS
- Series：-
- Mfr：Rohm Semiconductor
- Package：Tape & Reel (TR),Cut Tape (CT)
- Motor Type - Stepper：-
- Motor Type - AC, DC：Brushless DC (BLDC)
- Function：Driver
- Output Configuration：Half Bridge (3)
- Interface：Logic
- Technology：DMOS
- Step Resolution：-
- Applications：General Purpose
- Current - Output：3A
- Voltage - Supply：8V ~ 28V
- Voltage - Load：8V ~ 28V
- Operating Temperature：-25°C ~ 85°C (TA)
- Mounting Type：Surface Mount
- Package / Case：40-VFQFN Exposed Pad
- Supplier Device Package：VQFN040V6060
- Grade：-
- Qualification：-
Download product information
Overview
The BD63007MUV-E2 is a three-phase brushless DC motor driver manufactured by ROHM Semiconductor. It operates within an 8 V to 28 V supply voltage range and delivers up to 3 A output current per phase. The device features a 4.0 x 4.0 mm VQFN-40 package with exposed thermal pad, supporting surface mount installation. Operating temperature spans from -25°C to +85°C, with a typical supply current of 4.4 mA. It integrates half-bridge outputs for direct motor control.
Feature Summary
- Supports 120-degree, 150-degree, and 180-degree conduction angle driving modes including sine wave drive
- Compatible with both Hall sensor-equipped and sensorless BLDC motors
- Integrates high-reliability power MOSFET structure for efficient operation
Applications
- Paper feeding mechanisms in office equipment
- Multi-prism scanning devices
- Cooling fans and ventilation systems
- Optical Disk Drives (ODD)
Procurement Notes
Verify the suffix 'E2' indicates RoHS compliance and lead-free status as per ROHM standards. Confirm the VQFN-40 package variant matches design requirements. Check moisture sensitivity level handling procedures during assembly. Ensure operating voltage stays within 8V to 28V limits. Validate thermal dissipation capabilities for the specific PCB layout.
Selection Notes
Select this component for applications requiring integrated three-phase BLDC control without external pre-drivers. Compare output current ratings against motor specifications to ensure 3A capacity suffices. Consider the VQFN-40 footprint for space-constrained designs. Evaluate thermal performance given the exposed pad requirement. Verify compatibility with target conduction angles (120/150/180 degrees).
Part Context
This part belongs to ROHM's series of three-phase brushless motor drivers designed for general-purpose and consumer electronics. It sits alongside variants like BD63006MUV-E2 with lower current ratings. The family targets cost-sensitive, high-volume applications where integrated control and power stages reduce bill-of-materials complexity.
Replacement Considerations
BD63006MUV-E2 offers similar functionality with reduced 1.5A output current. BD63003MUV is a related predecessor in the series. Verify pinout compatibility and thermal characteristics when substituting. Check if the lower current rating of alternatives meets load requirements.
