Product Detailed Parameters
- Description：SINGLE H-BRIDGE DRIVER HIGH-SPEE
- Series：-
- Mfr：Rohm Semiconductor
- Package：Tape & Reel (TR),Cut Tape (CT)
- Motor Type - Stepper：Bipolar
- Motor Type - AC, DC：Brushed DC
- Function：Driver - Fully Integrated, Control and Power Stage
- Output Configuration：Half Bridge
- Interface：Logic
- Technology：DMOS
- Step Resolution：-
- Applications：Appliance
- Current - Output：1.2A
- Voltage - Supply：2.5V ~ 5.5V
- Voltage - Load：2V ~ 10V
- Operating Temperature：-35°C ~ 85°C
- Mounting Type：Surface Mount

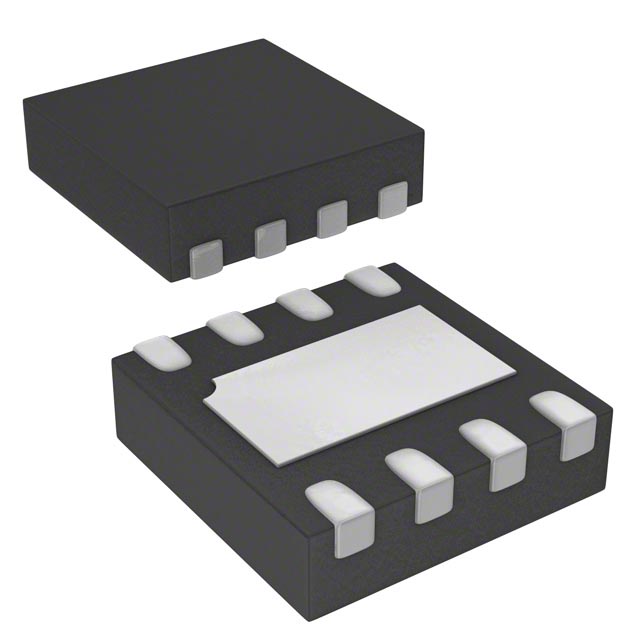

- Package / Case：8-UFDFN Exposed Pad
- Supplier Device Package：VSON008X2020
- Grade：-
- Qualification：-
Download product information
Overview
The BD63576NUX-E2 is a single H-bridge driver for brushed DC motors, manufactured by ROHM Semiconductor. It operates on a DMOS technology with a supply voltage range of 2.5V to 5.5V and supports load voltages from 2V to 10V. The device delivers an output current of 1.2A and features a low operating supply current of 135 uA. It functions within a frequency range of 20 kHz to 500 kHz and is housed in an 8-VSON package. The component supports an operating temperature range of -35°C to 85°C.
Feature Summary
- Integrates full control and power stages for single brushed DC motor applications
- Supports high-speed switching operations up to 500 kHz
- Designed for low power consumption with minimal standby current draw
Applications
- Home appliance motor control
- Small DC motor drives
- Battery-powered equipment
Procurement Notes
Verify the specific suffix E2 indicates RoHS compliance and lead time requirements against the manufacturer's latest documentation. Confirm the VSON-8 package availability and ensure the ordering quantity aligns with standard reel or cut-tape specifications provided by authorized distributors. Cross-reference the part number alias BD63576NUX to avoid procurement errors.
Selection Notes
Select this component for applications requiring a compact single H-bridge solution with low quiescent current. Ensure the system voltage remains within the 2.5V to 5.5V supply range and that the motor load does not exceed the 1.2A output current limit. Consider the thermal performance in the VSON-8 package when designing the PCB layout for adequate heat dissipation.
Part Context
This part belongs to the BD63576 series of motor drivers from ROHM Semiconductor. It is categorized under PMIC and Motor Drivers. The device is designed for surface mount installation and is suitable for integration into space-constrained electronic designs requiring efficient brushed DC motor management.
Replacement Considerations
The part number alias BD63576NUX may be used interchangeably depending on packaging variations. Verify pin compatibility and electrical specifications before substituting with other single H-bridge drivers from different manufacturers.
