BD63821EFV-E2

$2.64

Description：IC MOTOR DRIVER 19V-28V 28HTSSOP
Series：*
Mfr：Rohm Semiconductor
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:4e4beea32a3c Category: Motor Drivers, Controllers Brand: Rohm Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC MOTOR DRIVER 19V-28V 28HTSSOP
Series：*
Mfr：Rohm Semiconductor
Package：Tape & Reel (TR),Cut Tape (CT)
Motor Type - Stepper：-
Motor Type - AC, DC：-
Function：-
Output Configuration：-
Interface：-
Technology：-
Step Resolution：-
Applications：-
Current - Output：-
Voltage - Supply：-
Voltage - Load：-
Operating Temperature：-
Mounting Type：-
Package / Case：-
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

BD63821EFV-E2

Overview

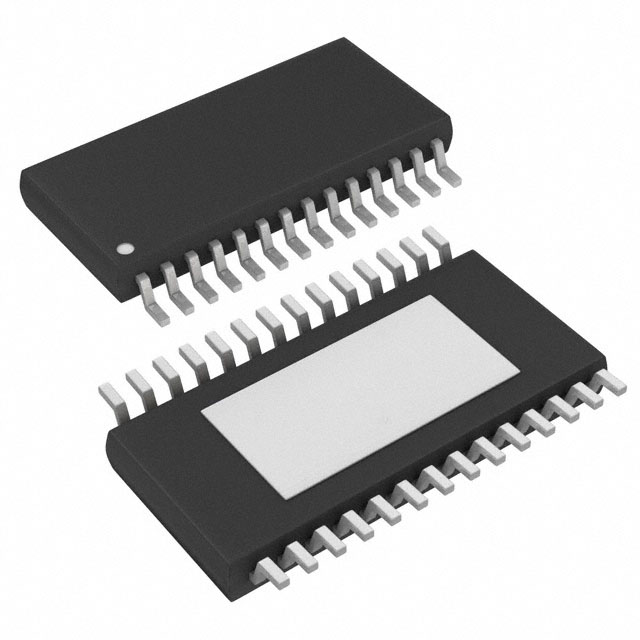

The BD63821EFV-E2 is a brushed DC motor controller manufactured by ROHM Semiconductor, designed for printer applications. It operates within a supply voltage range of 19 V to 28 V and delivers an output current of 1 A. The device features a power dissipation capacity of 4.7 W and functions reliably across an operating temperature range from -25 °C to +85 °C. It utilizes an HTSSOP-B-28 surface-mount package with a Reel packaging format.

Feature Summary

Brushed DC motor control capability
Single power supply input operation
Built-in thermal shutdown circuit (TSD)
Over-current protection circuit (OCP)

Applications

Printer motors
Motion control systems
Ignition controllers

Procurement Notes

This component carries the status NRND (Not Recommended for New Designs). Verify if existing inventory or last-time-buy options are available before finalizing procurement plans. Ensure compliance with RoHS requirements and handle moisture-sensitive devices according to standard guidelines during storage and assembly processes.

Selection Notes

Select this part for legacy designs requiring a 1 A brushed DC motor driver in an HTSSOP-B-28 package. Confirm that the 19 V to 28 V supply range aligns with system constraints. Evaluate the 4.7 W power dissipation against thermal management capabilities. Consider the NRND status when planning long-term production lifecycles.

Part Context

The BD63821EFV-E2 belongs to the BD63821 series of motor drivers. It is categorized under PMIC - Power Management ICs and specifically Motor / Motion / Ignition Controllers & Drivers. The product is classified as Fan / Motor Controllers / Drivers and supports SMD/SMT installation styles.
