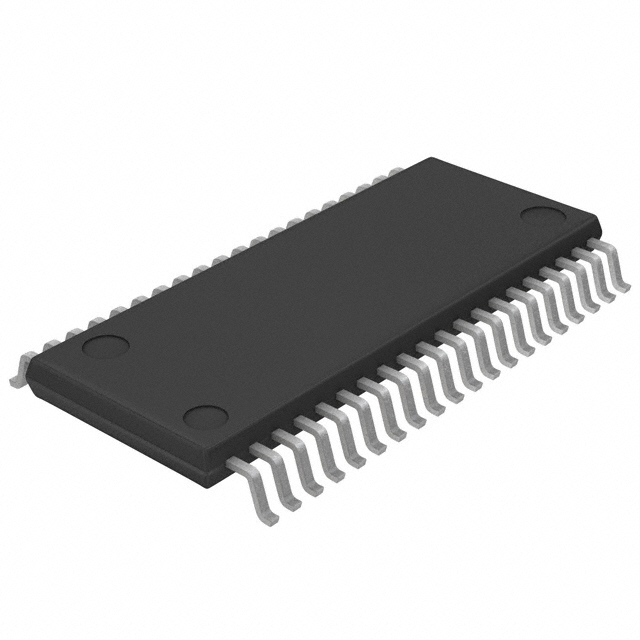

BD64550EFV-E2

$3.93

Description：IC MOTOR DRIVER 7V-36V 40HTSSOP
Series：*
Mfr：Rohm Semiconductor
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:402199490d8f Category: Motor Drivers, Controllers Brand: Rohm Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC MOTOR DRIVER 7V-36V 40HTSSOP
Series：*
Mfr：Rohm Semiconductor
Package：Tape & Reel (TR),Cut Tape (CT)
Motor Type - Stepper：-
Motor Type - AC, DC：-
Function：-
Output Configuration：-
Interface：-
Technology：-
Step Resolution：-
Applications：-
Current - Output：-
Voltage - Supply：-
Voltage - Load：-
Operating Temperature：-
Mounting Type：-
Package / Case：-
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

BD64550EFV-E2

Overview

The BD64550EFV-E2 is a fully integrated half-bridge motor driver designed for printer applications. It operates within a voltage range of 7V to 36V and delivers an output current of 2.5A. The device integrates a 2-channel H-bridge driver, a step-down switching regulator with built-in power DMOS, a series regulator, and a reset circuit. It utilizes a serial interface for control and is housed in a 40-pin HTSSOP package.

Feature Summary

Integrates a 2-channel H-bridge driver with a step-down switching regulator and built-in power DMOS
Includes an internal series regulator and reset circuit for system stability
Utilizes a serial interface for simplified control connections

Applications

Printer motor control systems

Procurement Notes

Verify the specific suffix E2 against the manufacturer's datasheet to confirm RoHS compliance and lead-free status. Confirm the 40-pin HTSSOP package dimensions match your PCB footprint requirements. Check for obsolescence notices as the component may be restricted for new designs.

Selection Notes

Select this component for applications requiring a compact, integrated solution for driving motors via a serial interface. Ensure the input voltage stays within the 7V to 36V range. Verify that the 2.5A output current meets the load requirements and that the thermal performance of the 40-pin package is sufficient for the operating environment.

Part Context

This part belongs to the BD64550 family of motor drivers from Rohm Semiconductor. It is specifically engineered for printer mechanisms, combining power stage and control logic into a single chip to reduce board space and component count.
