BD69060GFT-TL

Overview

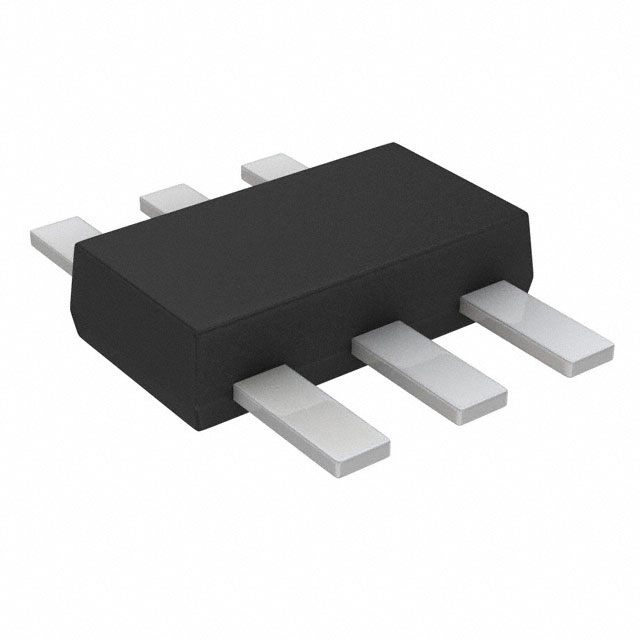

The BD69060GFT-TL is a single-phase brushless DC motor controller manufactured by ROHM Semiconductor. It operates within a supply voltage range of 1.8 V to 5.5 V and supports load voltages from 160 mV to 5 V. The device delivers an output current of 200 mA with an operating supply current of 3 mA. It functions at frequencies between 5 kHz and 50 kHz. The component is housed in a TSSOP-6 package, suitable for surface mount installation, and maintains operational reliability across temperatures from -40°C to +105°C.

Feature Summary

• Single-phase architecture designed for low-consumption applications
• Integrated PWM control interface with frequency support up to 50 kHz
• Optimized for fan motor driver implementations

Applications

• Fan motor driver circuits
• Single-phase BLDC motor control systems
• Low-power motion control modules

Procurement Notes

Verify the specific suffix 'TL' against the manufacturer's latest datasheet to confirm tape-and-reel packaging specifications. Ensure that the TSSOP-6 footprint matches the target PCB design. Confirm RoHS compliance status through official documentation prior to integration into regulated assemblies.

Selection Notes

Select this component when a single-phase solution with 200 mA output capability is required. The wide operating temperature range supports industrial environments. Consider the 3 mA supply current for battery-sensitive designs. Verify compatibility with the intended PWM signal frequency range before finalizing the design.

Part Context

This part belongs to ROHM's Brushless DC Motor Controllers subcategory under PMICs. It serves as a specialized driver for single-phase motors, distinct from multi-phase or stepper variants. The TSSOP-6 package provides a compact form factor compared to larger motor driver families.

Replacement Considerations

BD69060GFT is listed as an alias for this part number.
