BD8960NV-E2

Overview

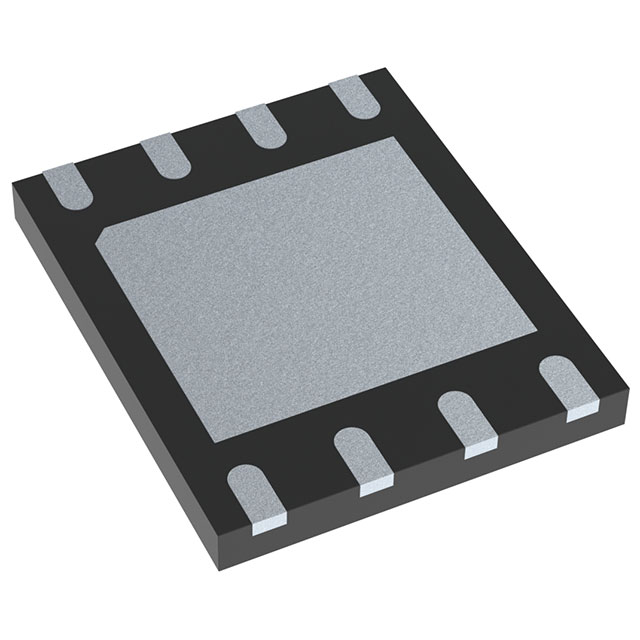

The BD8960NV-E2 is a synchronous buck converter from ROHM Semiconductor, designed for high-efficiency step-down regulation. It operates with an input voltage range of 2.7 V to 5.5 V and delivers a maximum output current of 2 A. The device supports adjustable output voltages between 1 V and 2.5 V. Key electrical specifications include a typical switching frequency of 1 MHz, a standby current of 10 uA, and an operating temperature range from -25°C to +105°C. It utilizes a SON-8 package.

Feature Summary

• Employs a current mode PWM control system to provide fast transient response to sudden load changes.
• Integrates N-channel and P-channel FETs for synchronous rectification, ensuring high efficiency across all load ranges.
• Includes built-in protection features such as thermal shutdown, under-voltage lockout (ULVO), and short-current protection with a time delay function.

Applications

• Power supply for DSPs
• Microcomputer power systems
• ASIC power delivery

Procurement Notes

Verify the component status before procurement, as this part may be marked as Not Recommended for New Designs (NRND). Confirm that the SON-8 package dimensions align with your PCB footprint requirements. Ensure the input voltage source remains within the specified 2.7 V to 5.5 V range to guarantee proper operation and avoid triggering under-voltage lockout conditions during system integration.

Selection Notes

Select this component when designing systems requiring a wide input voltage range starting from 2.7 V, which accommodates single-cell lithium battery applications. It is suitable for designs needing a compact solution with integrated power FETs, eliminating the need for external high-current switches. Consider the -25°C minimum operating temperature limit when evaluating environmental constraints compared to industrial-grade alternatives that support lower temperatures.

Part Context

This device belongs to the BD8960NV series of synchronous buck converters manufactured by ROHM Semiconductor. It is categorized under PMIC - Power Management ICs and specifically functions as a Step-Down Switching Regulator. The product line focuses on providing efficient power conversion for digital logic loads using a compact surface-mount technology package.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative ROHM buck converters if this specific NRND part is unavailable for new production runs.
