Product Detailed Parameters
- Description：CONN EDGE DUAL FML 230POS 0.020
- Series：BEC
- Mfr：Yamaichi Electronics
- Package：Tape & Box (TB)
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：-
- Number of Positions：230
- Card Thickness：0.047" (1.20mm)
- Number of Rows：2
- Pitch：0.020" (0.50mm)
- Read Out：Dual
- Features：Board Guide, Solder Retention
- Mounting Type：Surface Mount, Right Angle
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：30.0µin (0.76µm)
- Contact Type：-
- Color：Black
- Flange Feature：-
- Operating Temperature：-40°C ~ 80°C
Download product information
Overview

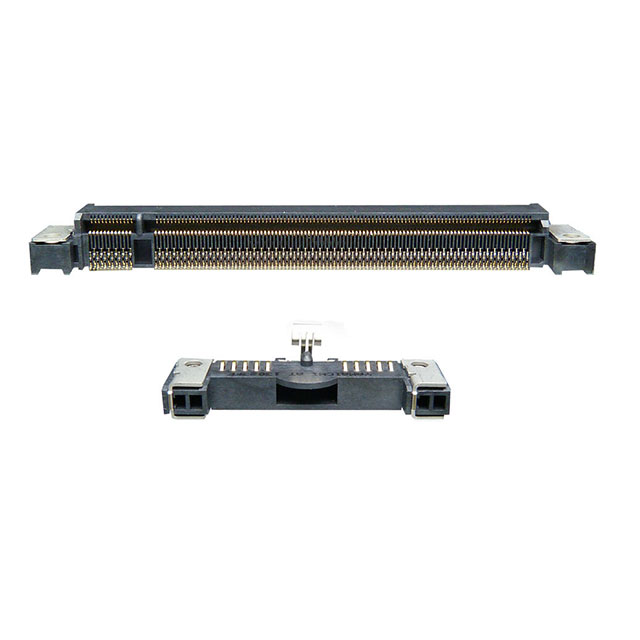

The BECHS-0.5-230-S9-AF-REDC1 is a standard card edge connector manufactured by Yamaichi Electronics, designed for surface mount applications with a right-angle orientation. It features a 0.50mm pitch and accommodates 230 positions. The connector utilizes gold plating on the contacts to ensure reliable signal transmission. Constructed with a liquid crystal polymer (LCP) housing, it supports a maximum operating temperature of +85°C. The component has a current rating of 500 mA and an insulation resistance of 250 MOhms, making it suitable for high-density electronic interconnections.
Feature Summary
- Surface mount right-angle design for compact board integration
- Gold-plated contacts for enhanced conductivity and corrosion resistance
- Liquid crystal polymer housing for thermal stability
Applications
- Infotainment systems requiring high pin counts
- High-density data transmission modules
- Consumer electronics with limited board space
Procurement Notes
Verify the specific suffix 'REDC1' against official Yamaichi Electronics documentation to confirm exact plating thickness and material specifications. Ensure compatibility with mating card edge dimensions and verify that the 0.50mm pitch aligns with the target PCB layout requirements before ordering.
Selection Notes
Select this component when a high-pin-count interface with a fine 0.50mm pitch is required in a right-angle configuration. Consider the 500 mA current rating and +85°C temperature limit to ensure operational reliability within the intended environmental constraints of the electronic assembly.
Part Context
This part belongs to the BECHS series of standard card edge connectors from Yamaichi Electronics. The series is characterized by its suitability for high-speed data applications and robust mechanical performance. The specific model indicates a dual-edge or single-edge configuration depending on the detailed datasheet, optimized for modern consumer and industrial electronics.
Replacement Considerations
Cross-reference with other Yamaichi BECHS variants sharing the same 0.50mm pitch and 230-position count. Verify mechanical footprint and electrical ratings match exactly before substituting with generic equivalents.
