BF030-40A-B0-0200-0277-0600-LD

Headers, Male Pins Overview

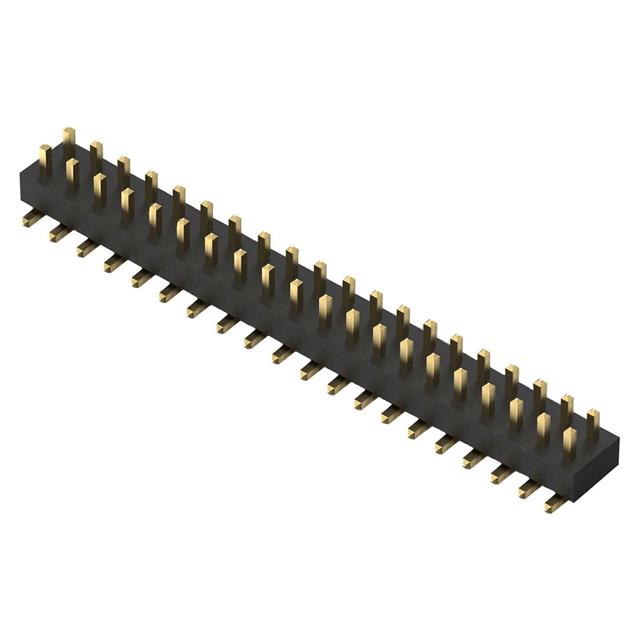

The BF030-40A-B0-0200-0277-0600-LD is a board-to-board connector from the GCT BF030 series. It features a 40-position, dual-row male header with a 2.00mm (0.079 inch) pitch. Designed for surface mount installation, it utilizes gold flash plating over nickel barriers on phosphor bronze contacts. The unit operates within a temperature range of -40°C to +105°C and supports a current rating of 2 Amps. It includes locating pegs and is supplied in tape and reel packaging.

Headers, Male Pins Feature Summary

• Dual-row male pin header configuration for high-density interconnect applications
• Back flip actuator mechanism for secure FFC/FPC mating engagement
• Gold-plated contacts ensure reliable signal transmission and corrosion resistance
• Surface mount design facilitates automated PCB assembly processes

Headers, Male Pins Applications

• High-density electronic device interconnections
• Consumer electronics internal circuit boards
• Industrial control system modules
• Telecommunications equipment interfaces

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm mechanical dimensions and contact plating specifications. Ensure compatibility with the target Printed Circuit Board layout regarding row spacing and mounting hole placement. Confirm that the selected variant meets the required environmental operating temperature range for the intended application environment.

Headers, Male Pins Selection Notes

Select this component when a 40-position, 2.00mm pitch dual-row connection is required. Consider the surface mount orientation and back flip actuator style for ease of assembly. Evaluate the 2 Amp current rating and -40°C to +105°C temperature range against system thermal and electrical requirements before finalizing the design.

Headers, Male Pins Part Context

This part belongs to the GCT BF030 series, which specializes in 2.00mm pitch pin headers. The series offers various configurations including single and dual rows with different actuation styles. The BF030-40A variant specifically addresses the need for robust, high-count connections in space-constrained electronic assemblies requiring reliable surface mount termination.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify cross-reference options directly with the manufacturer or authorized distributors to ensure mechanical and electrical compatibility.
