BF100-12-A-C-0-0625-N-D

Headers, Receptacles, Female Sockets Overview

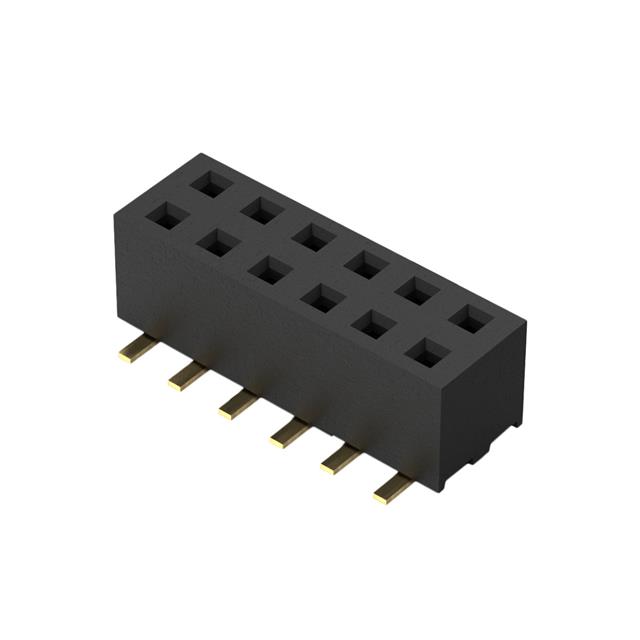

The GCT BF100-12-A-C-0-0625-N-D is a board-to-board connector from the BF100 series. It features a 12-position receptacle with dual entry capability for top or bottom mating. The connector utilizes a 2.00mm pitch and employs a surface mount termination method. It includes gold plating on contacts and uses a push-pull fastening mechanism.

Headers, Receptacles, Female Sockets Feature Summary

• Dual entry design supports both top and bottom board connections
• Push-pull fastening system ensures secure mechanical retention
• Gold contact plating provides reliable electrical performance

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnections in electronic assemblies
• Mezzanine connector applications requiring vertical mounting
• High-density circuit board integration systems

Headers, Receptacles, Female Sockets Procurement Notes

Verify that the specific part number matches the required 12-position configuration and dual entry specifications. Confirm surface mount compatibility with the target PCB footprint. Ensure the push-pull fastening requirement aligns with the assembly design constraints before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a 2.00mm pitch board-to-board connection is required. Choose this variant for applications needing dual entry flexibility and surface mount processing. Consider the push-pull retention mechanism if standard latching is insufficient for the operational environment.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the GCT BF100 series of board-to-board connectors. The series offers various pin counts and configurations. This specific model represents a 12-position option within the lineup, designed for high-reliability interconnect solutions in compact electronic devices.

Headers, Receptacles, Female Sockets Replacement Considerations

Check for compatible alternatives within the same BF100 series family. Verify identical pitch, row count, and termination style when sourcing substitutes. Ensure mechanical dimensions match the existing PCB layout to maintain assembly integrity.
