BF3H15G-RNH-020mA

Overview

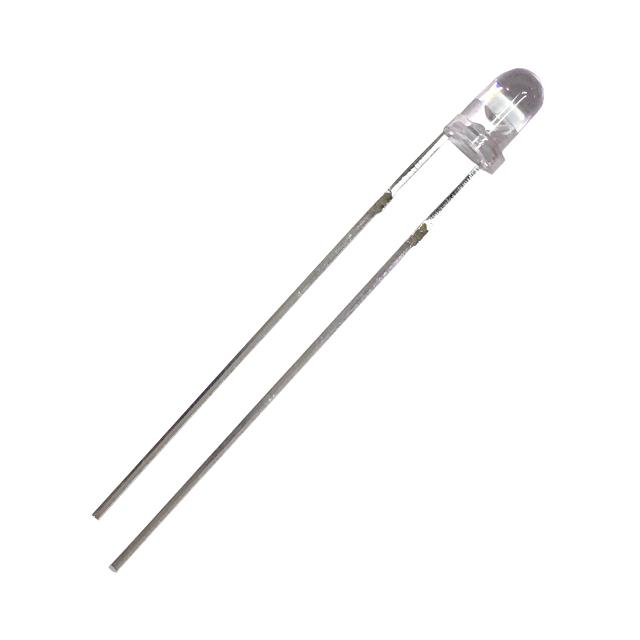

The BF3H15G-RNH-020mA is a discrete red LED lamp manufactured by Solidlite. It features a water clear lens and utilizes AlGaInP dice material to emit light at a wavelength of 625nm. The component is designed for radial through-hole mounting with a forward voltage of 2.0V. It operates with a test current of 20mA and provides a luminous intensity of 15 mcd.

Feature Summary

• Emits red light at a specific wavelength using AlGaInP semiconductor technology
• Features a water clear lens for optimal light transmission
• Designed for standard radial through-hole PCB mounting

Applications

• Panel indicator lights
• Power status indication
• Control board signaling

Procurement Notes

Verify the complete part number including suffixes against official Solidlite documentation to ensure correct color, voltage, and intensity specifications. Confirm package dimensions and lead forming requirements match the target assembly design before procurement.

Selection Notes

Select this component when a standard red through-hole indicator is required. Ensure the circuit design accommodates the 2.0V forward voltage drop and 20mA operating current. Verify that the 15 mcd intensity meets visibility requirements for the intended application environment.

Part Context

This part belongs to the Solidlite discrete LED lamp category. It is an independent optical device distinct from multi-color or addressable arrays. The model designation indicates specific electrical and optical characteristics within the manufacturer's radial LED portfolio.

Replacement Considerations

Consult official Solidlite substitution guides for verified equivalents. Cross-reference parameters such as wavelength, forward voltage, and luminous intensity to ensure functional compatibility in existing designs.
