BGSC2341ML10E6327XTSA1

Overview

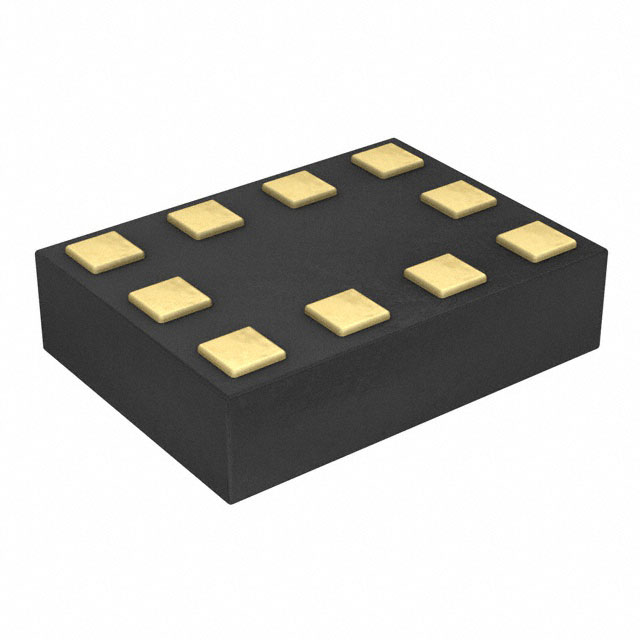

The BGSC2341ML10E6327XTSA1 is a general-purpose RF integrated circuit manufactured by Infineon Technologies, classified as an antenna device. It functions as a digitally tunable capacitor with an SPDT switch configuration. The component operates within a frequency range of 400 MHz to 3.8 GHz and utilizes a MIPI interface for control. It is housed in a PG-TSLP-10 package and supports surface mount installation. The device is designed for wireless applications and is currently marked as Not Recommended for New Designs (NRND).

Feature Summary

• Integrates digitally tunable capacitor functionality with single-pole double-throw switching capability.
• Supports MIPI interface protocol for digital control and configuration.
• Engineered for general-purpose radio frequency signal routing and tuning.

Applications

• Wireless communication systems requiring antenna tuning.
• RF front-end modules utilizing MIPI control interfaces.
• General-purpose RF signal path management.

Procurement Notes

Verify the current lifecycle status before procurement, as this component is designated as Not Recommended for New Designs. Confirm that existing inventory or last-time buy options meet project requirements. Ensure compatibility with the PG-TSLP-10 package footprint during design finalization. Check for updated datasheets to confirm pinout and electrical characteristics remain consistent with previous revisions.

Selection Notes

Select this component only if the specific combination of SPDT switching and digital capacitance tuning is required. Verify that the operating frequency range up to 3.8 GHz aligns with system specifications. Consider the NRND status when planning long-term production runs. Evaluate alternative components from the same manufacturer family if new design approval is necessary.

Part Context

This part belongs to Infineon's portfolio of RF switch ICs and antenna devices. It is categorized under wireless and RF integrated circuits. The component serves specialized roles in managing RF signals within compact electronic designs. Its integration of tuning and switching capabilities distinguishes it from standard passive switches.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Due to the NRND status, engineering change orders may be required for ongoing production. Consult official Infineon resources for potential obsolescence management strategies.
