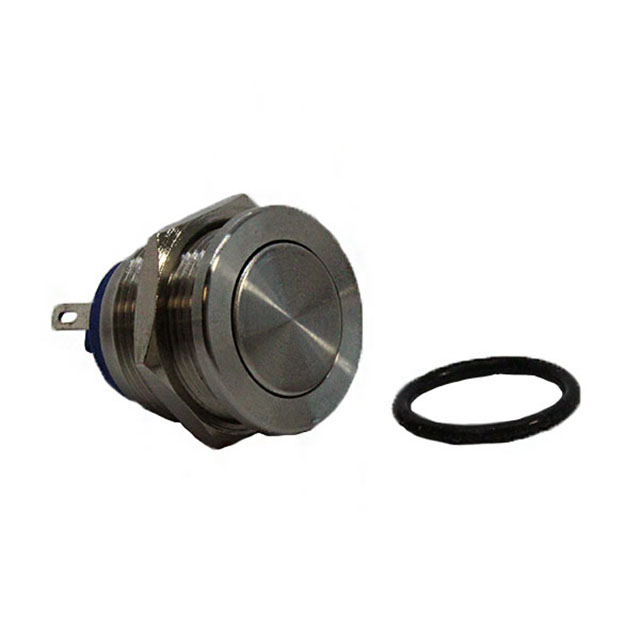

BH19NFSBX

BH19NFSBX is listed in the Pushbutton Switches range at ChipApex. The manufacturer field lists CIT Relay and Switch. Its product description is SWITCH PB SPST 1A 125V. Review the specifications below when checking this part for your BOM.

Pushbutton Switches specifications for BH19NFSBX

• Description：SWITCH PB SPST 1A 125V
• Series：BH
• Mfr：CIT Relay and Switch
• Package：Tray
• Mounting Type：Panel Mount, Front
• Type：Anti-Vandal
• Circuit：SPST
• Switch Function：Off-Mom
• Current Rating (Amps)：1A (AC), 2A (DC)
• Actuator Type：Round, Button, Flush
• Actuator Marking：No Marking
• Color - Actuator/Cap：Silver
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Termination Style：Solder Lug
• Ingress Protection：IP67 - Dust Tight, Waterproof
• Features：Stainless Steel
• Panel Cutout Dimensions：Circular - 19.00mm Dia
• Operating Temperature：-25°C ~ 55°C
• Voltage Rating - DC：36 V
• Voltage Rating - AC：125 V

Pushbutton Switches datasheet and documents for BH19NFSBX
